Carb Service Kit A, 16 pieces, Honda CBR250R MC14, MC17 & MC19

Description

Carb Service Kit A, 16 pieces, Honda CBR250R MC14, MC17 & MC19

LiteTek Carburettor Seal Kit to suit
Honda CBR250R MC14, MC17 & MC19
Made from long lasting, ethanol resistant elastomers and Viton®

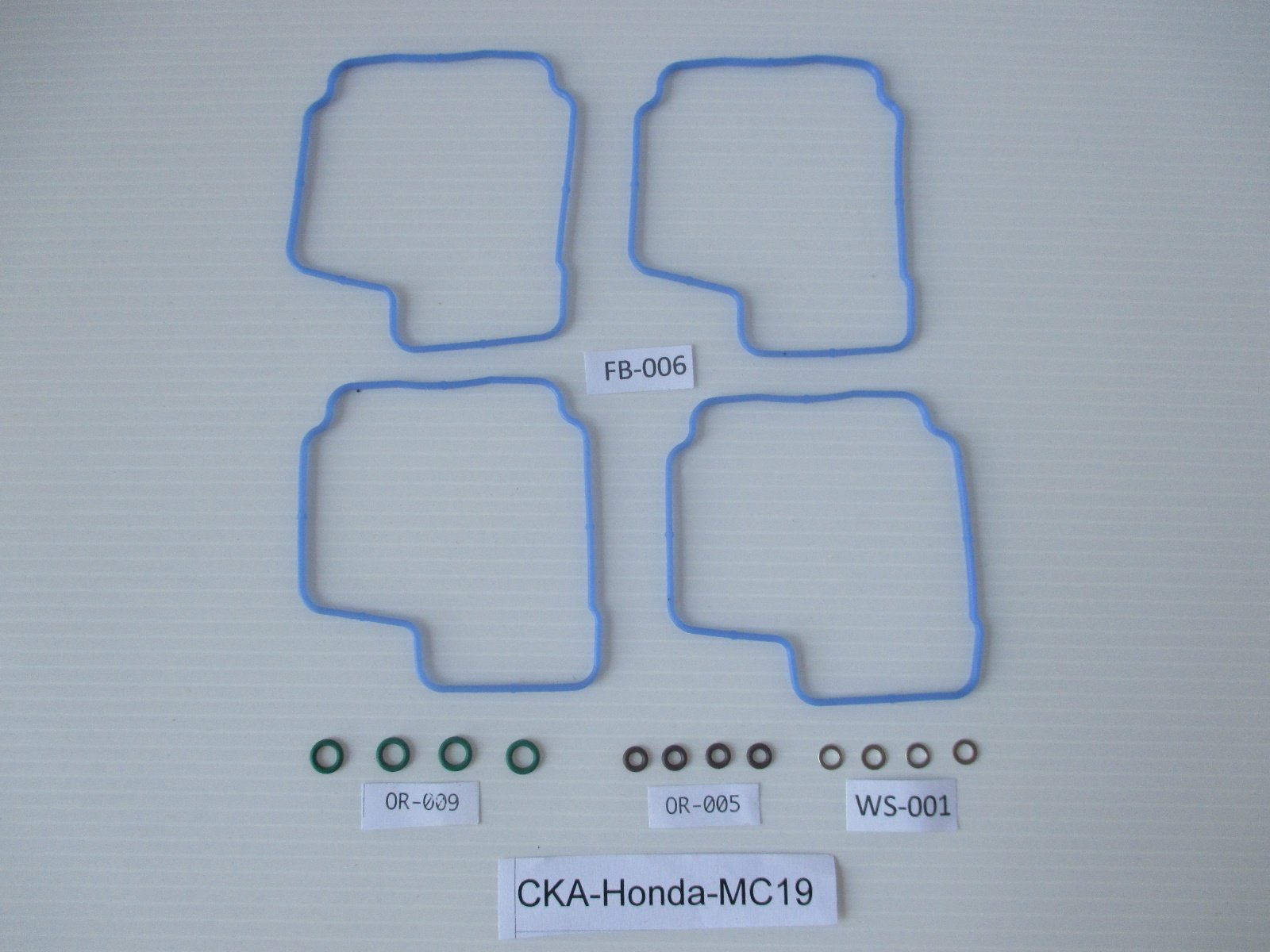

Consist of the following items:

• 4x FB-006 Float Bowl Ring, Material: Flourosilicone, ( Part of Honda Assembly Part No. [16010-KT7-003 or 16010-MN4-003] superseded by 16010-MN4-305)
• 4x OR-005 Pilot Screw O-Ring, Material: Viton 70A, ( Part of Honda Assembly Part No. [16010-KT7-003 or 16010-MN4-003] superseded by 16010-MN4-305)
• 4x WS-001 Pilot Screw Washer, Material: Stainless Steel
• 4x OR-009 Drain Screw O-Ring, Material: Viton 70A ( Part of Honda Assembly Part No. [16010-KT7-003 or 16010-MN4-003] superseded by 16010-MN4-305)

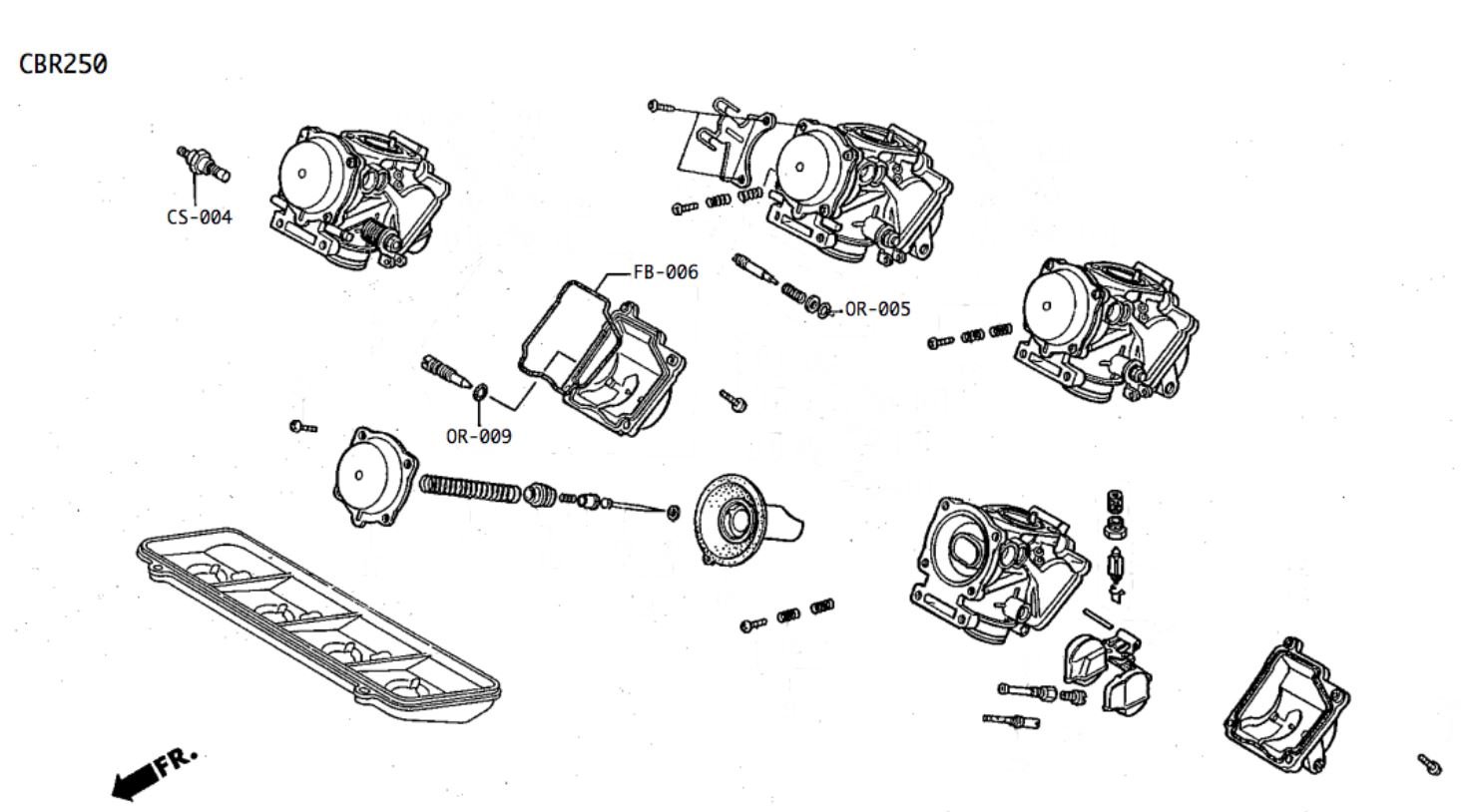

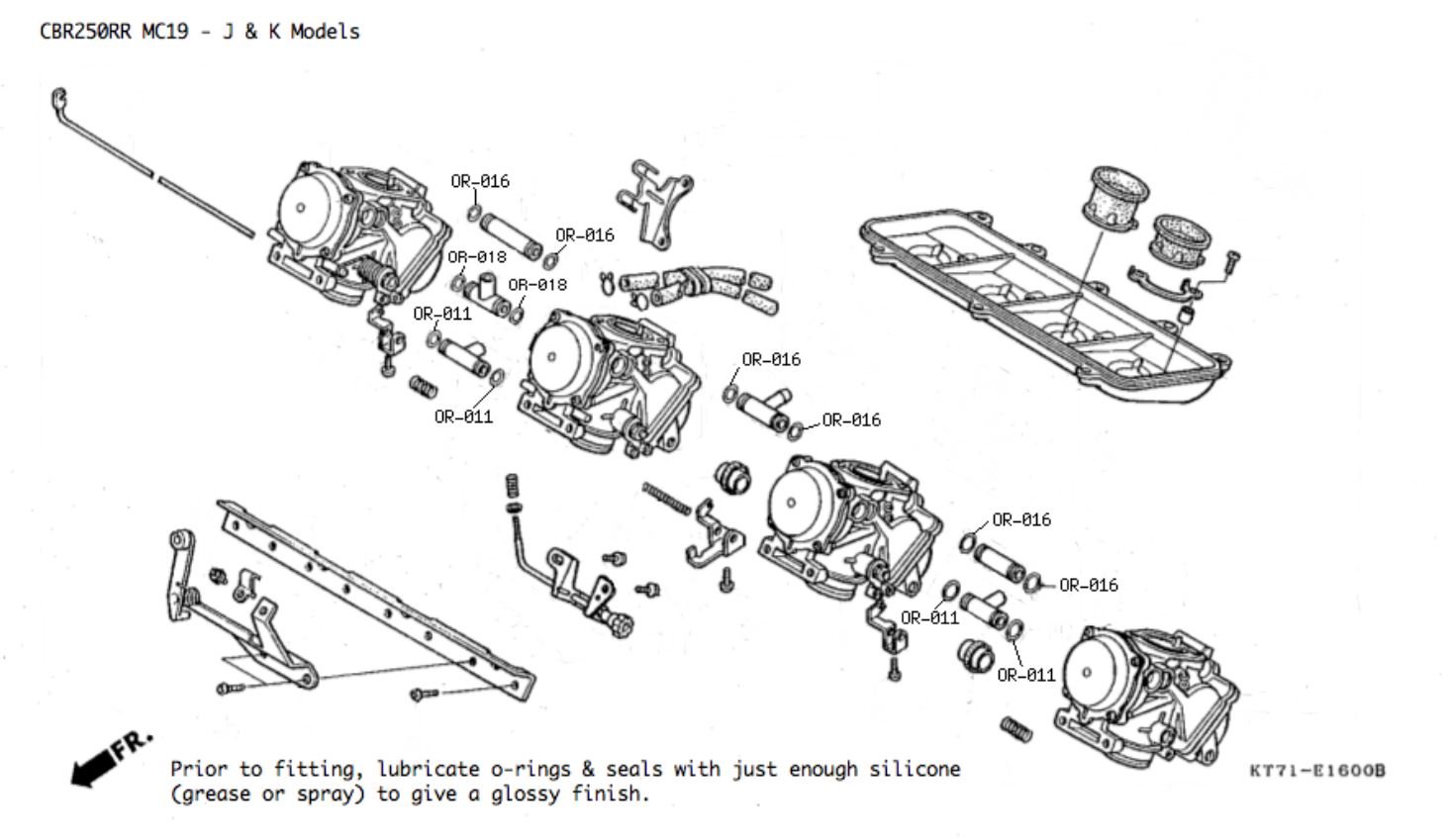

Honda parts diagram for the carburettors:

Please also see Honda CBR250R MC14, MC17 & MC19 Carb Service Kit B, 23 pieces.
