Carb Service Kit B, 23 pieces, Honda CBR250R MC14, MC17 & MC19

Description

Carb Service Kit B, 23 pieces, Honda CBR250R MC14, MC17 & MC19

LiteTek Carburettor Seal Kit to suit
Honda CBR250R MC14, MC17 & MC19
Made from long lasting, ethanol resistant elastomers and Viton®

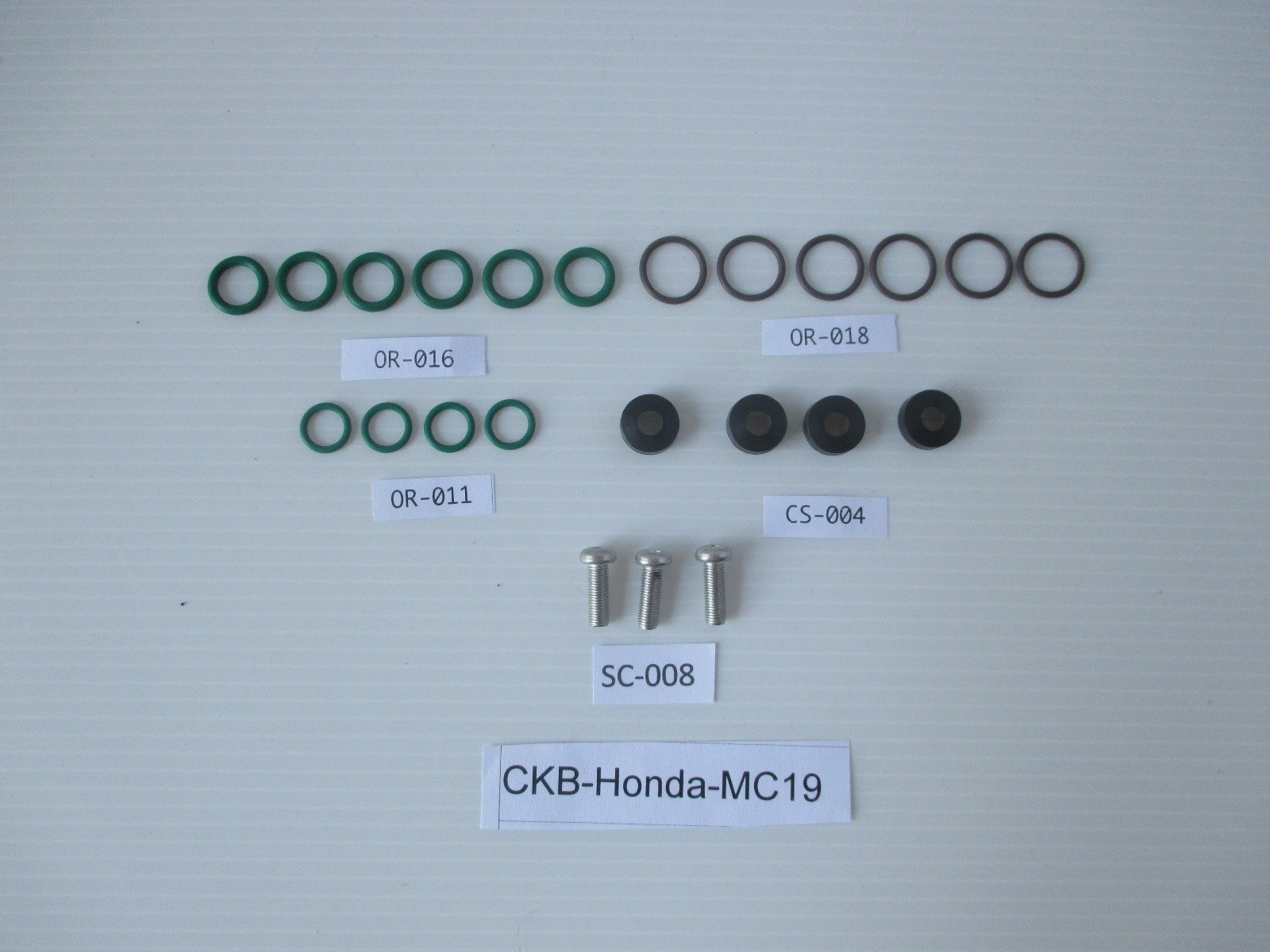

Consist of the following items:

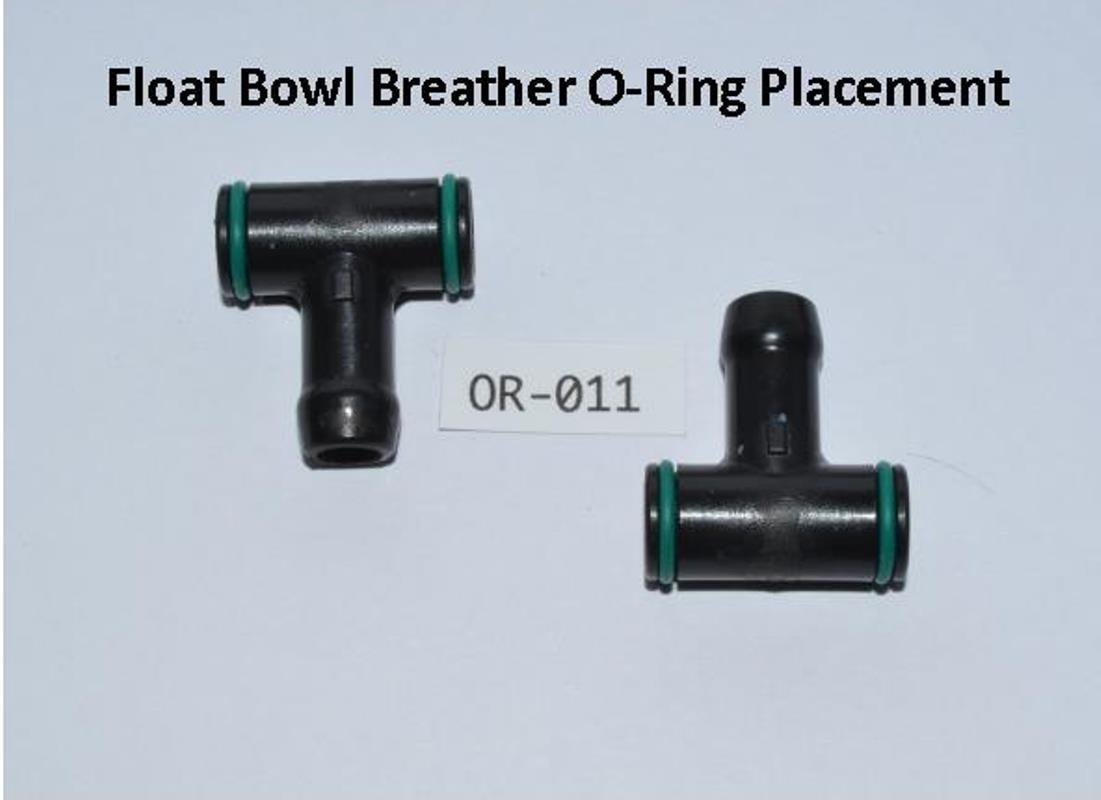

• 4x OR-011 Float Breather O-Ring, Material: Viton 70A, (Part of Honda Assembly Part No. 16040-KT7-003)
• 6x OR-016 Fuel T-Pipe O-Ring, Material: Viton 70A, (Part of Honda Assembly Part No. 16040-KT7-003)
• 6x WS-018 Vacuum Breather O-Ring, Material: Viton 70A, (Part of Honda Assembly Part No. 16040-KT7-003)
• 4x CS-004 Choke Plunger Cap, Material: HNBR, (Part of Honda Assembly Part No. 16046-KT7-003 or 16046-KT8-003)
• 3x SC-008 Throttle Synch Screws, Material: Stainless Steel

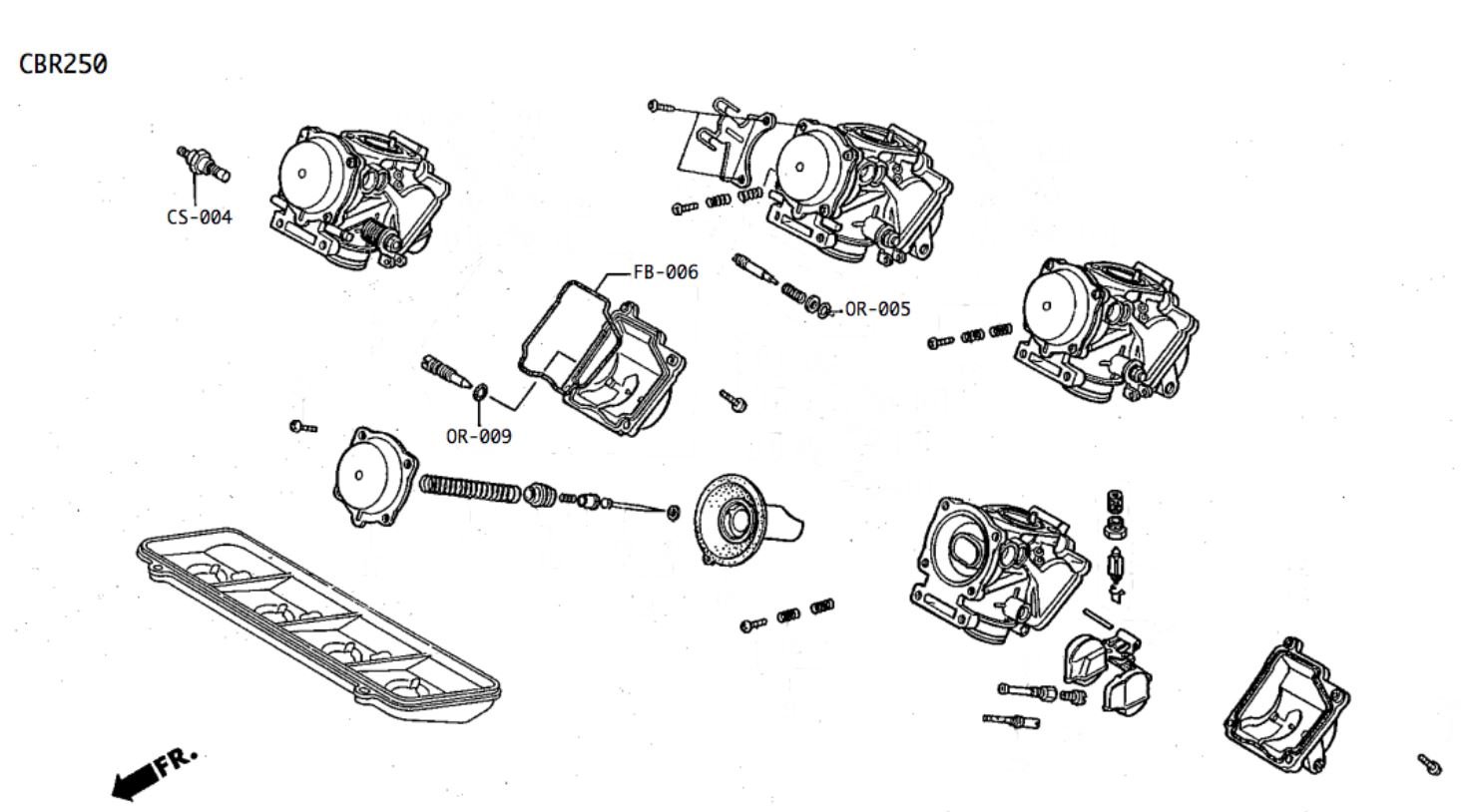

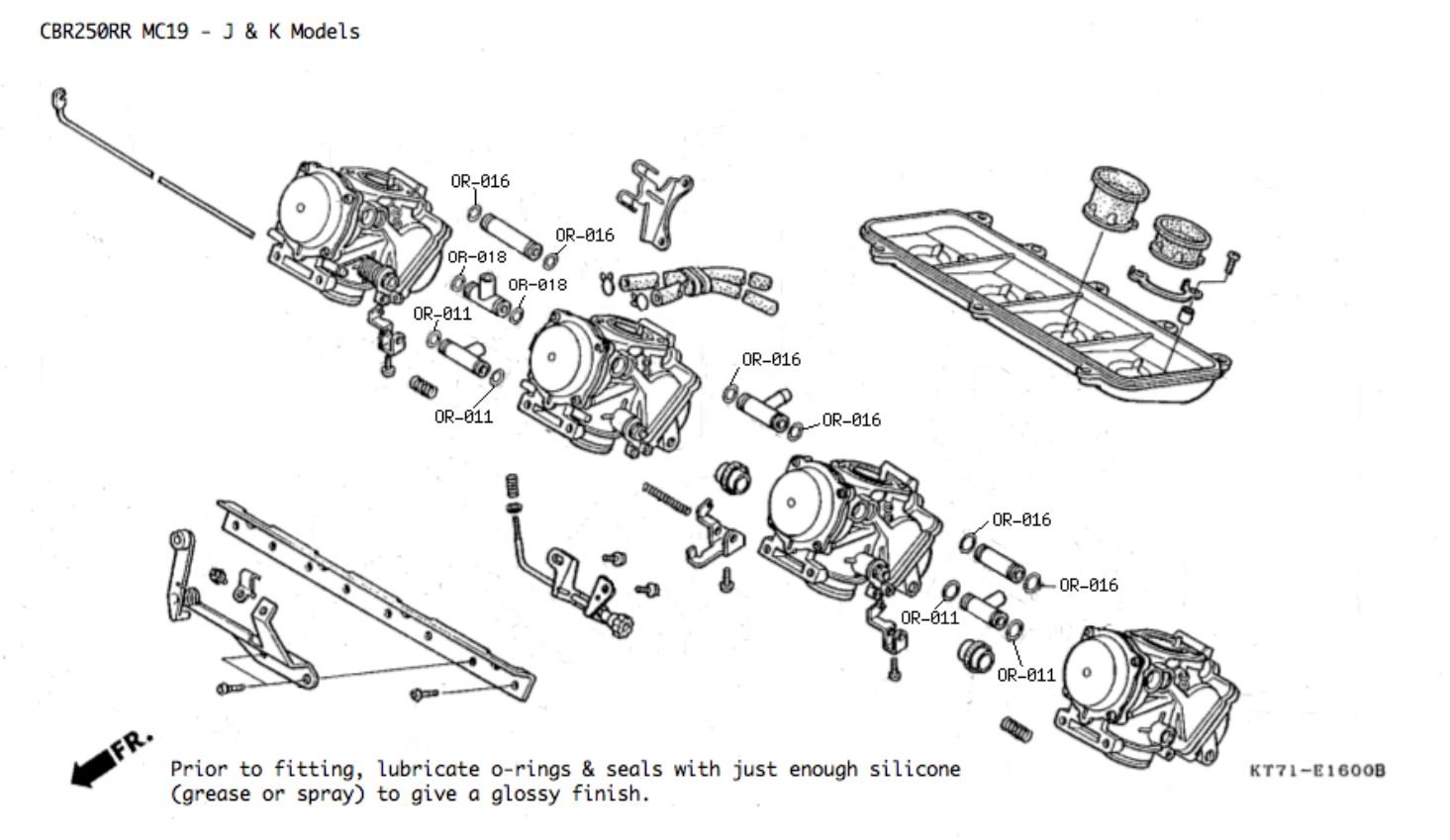

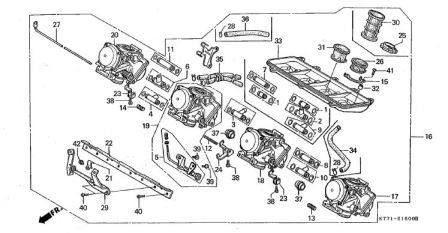

Honda parts diagram for the carburettors:

Please also see Honda CBR250R MC14, MC17 & MC19 Carb Service Kit A, 16 pieces.
