Triple Clamp Set, CNC Black, CBR600RR Forks to fit MC28

Description

Triple Clamp Set, CNC Black, CBR600RR Forks to fit MC28

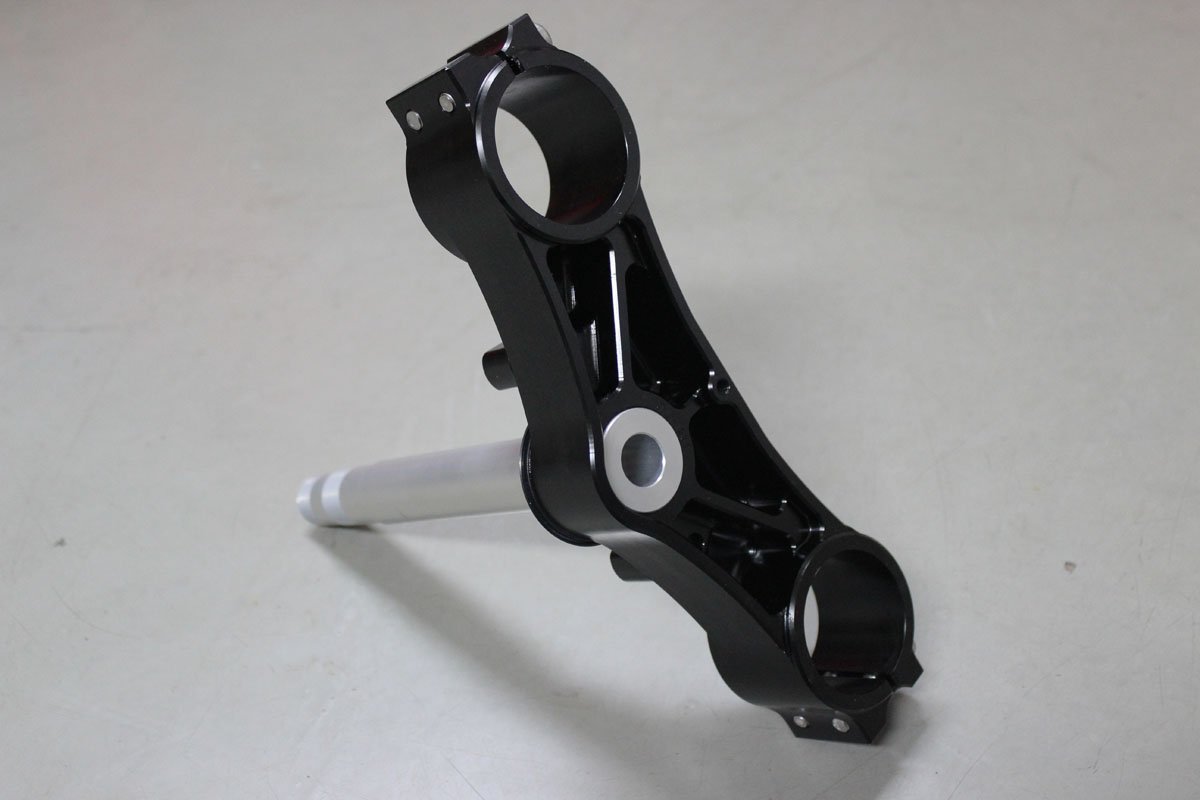

CNC machined TYGA lower triple clamp for the MC28 NSR250 to take 53 mm diameter CBR600RR forks. (For later model CBR600RR which use 54 mm forks, we can supply by special order so please send us an email or put a comment with your or der that you need 54 mm and not the default 53mm.)

Designed and machined in-house by TYGA from aircraft spec 6061-T6 alloy. FEA tested and developed for increased strength without unnecessary weight increase.

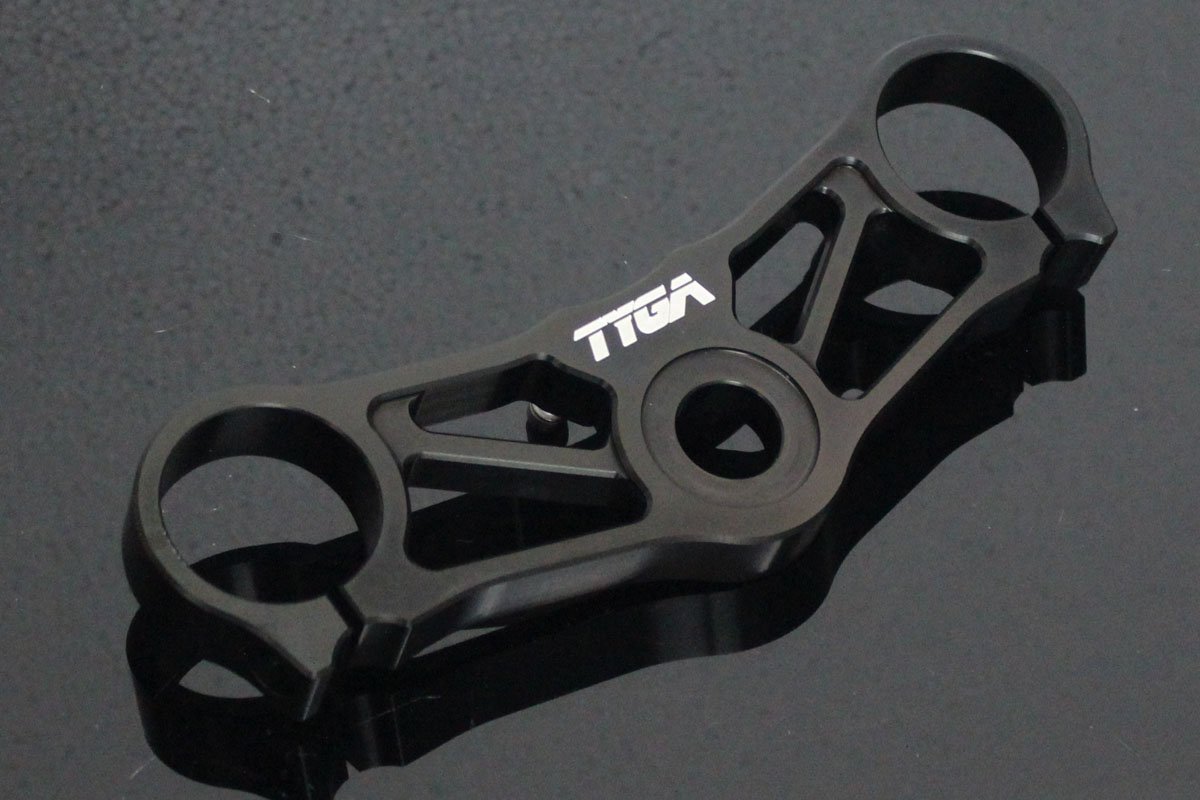

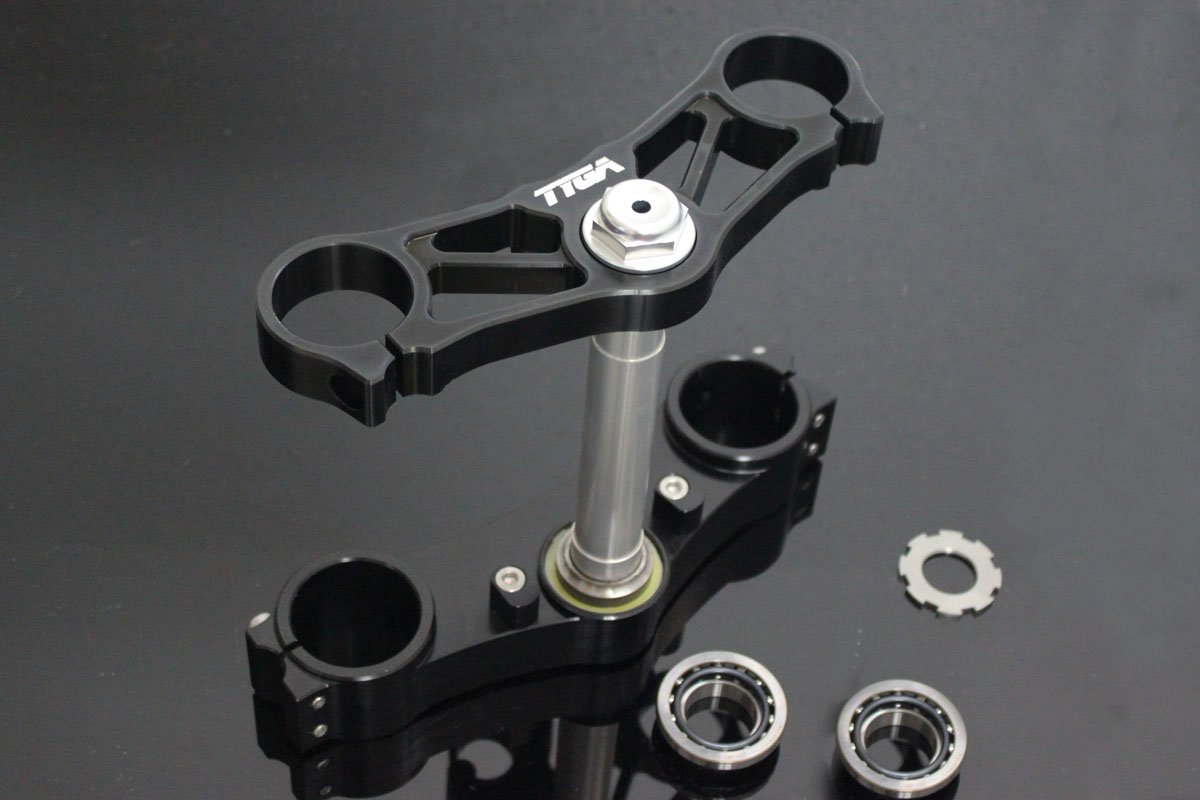

They are delivered ready to fit with all necessary bearings and lower seal, and even an aluminium top clamp nut, to complete the transformation. The top clamp has the ‘bolt-on’ ingnition switch/ lock holder fitted, which can be removed for racing.

The Steering stoppers are reversible, giving maximum steering lock for street application, or a reduced angle for racing.

Note, we recommend using Handlebar set 48 mm. TYLY-0012 when installing this triple clamp set for best clearance issue with the NSR fairing.

Tightening recommendations:

Lower clamp pinch bolts: 23Nm.

Top clamp pinch bolts: 23Nm.
