Triple Clamp Set, CNC Silver, KRR150ZX

Description

Triple Clamp Set, CNC Silver, KRR150ZX

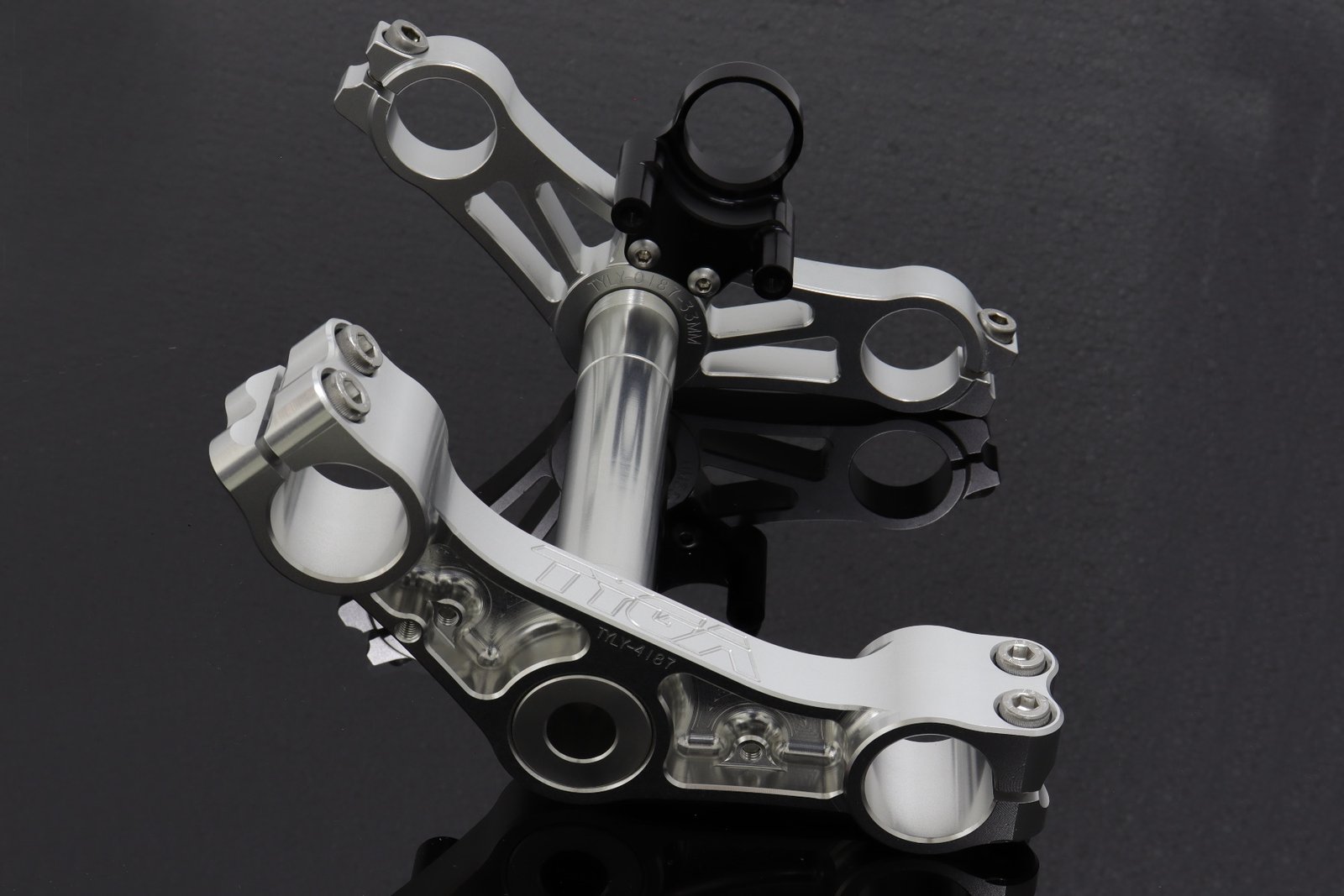

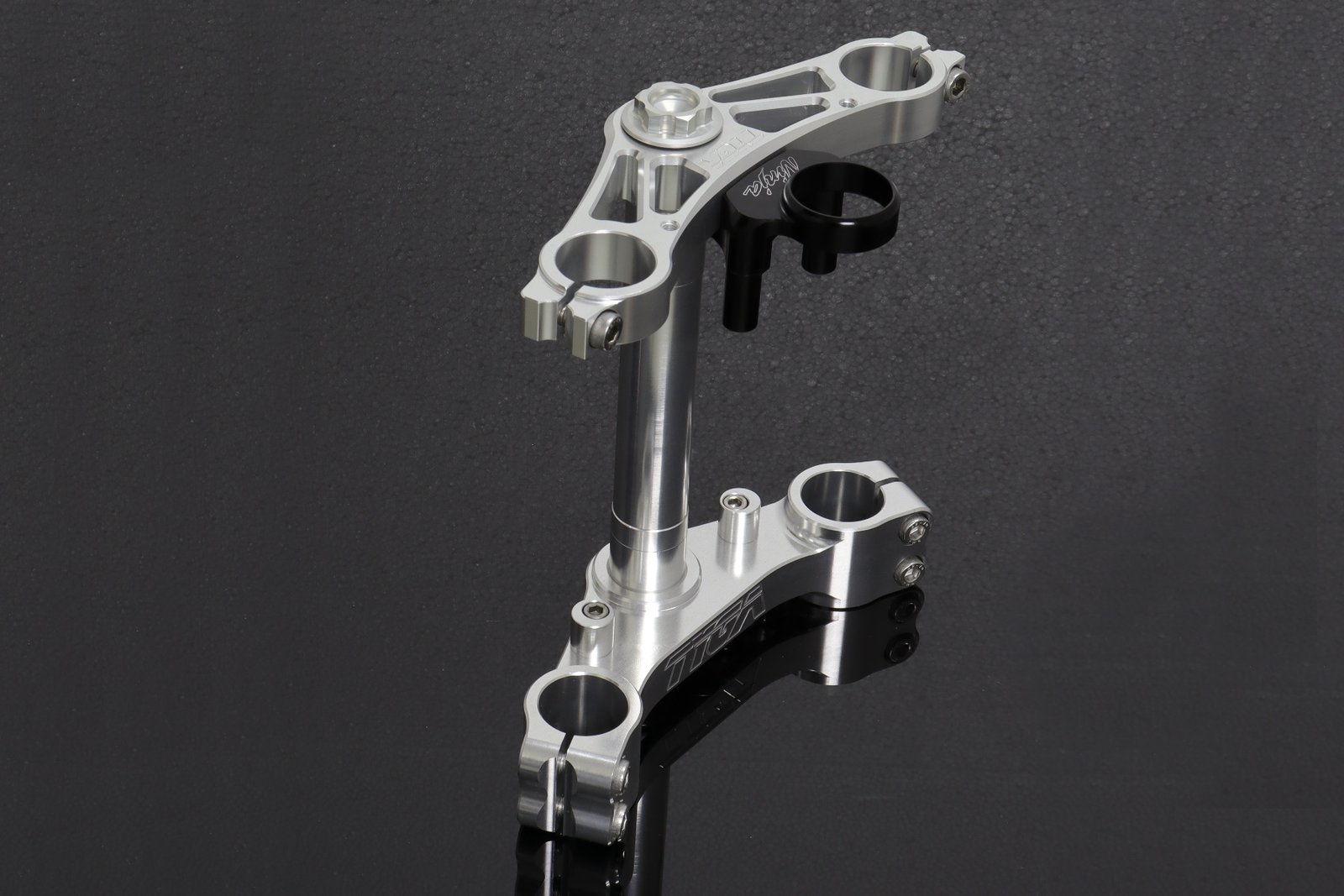

CNC machined TYGA triple clamp set for your KRR150ZX.

These stylish, all aluminium triple clamps are a direct replacement for the OEM KRR150ZX triple clamps, and with the help of FEA testing not only do they look fantastic, but they perform!

---

This set  includes the washer, lower seal and lower bearing race, pre-fitted to the lower clamp.
Please note that the remaining headstock bearing parts are not included and must be purchased separately. The remaining parts are:

• 39x  92140-0008    Ball-Steel, 1/4″
• 1x    92048-0037    Race, Steering Stem Bearing
• 1x    92048-0036    Race, Steering Stem Bearing
• 1x    92048-0032    Race, Steering Stem Bearing

---

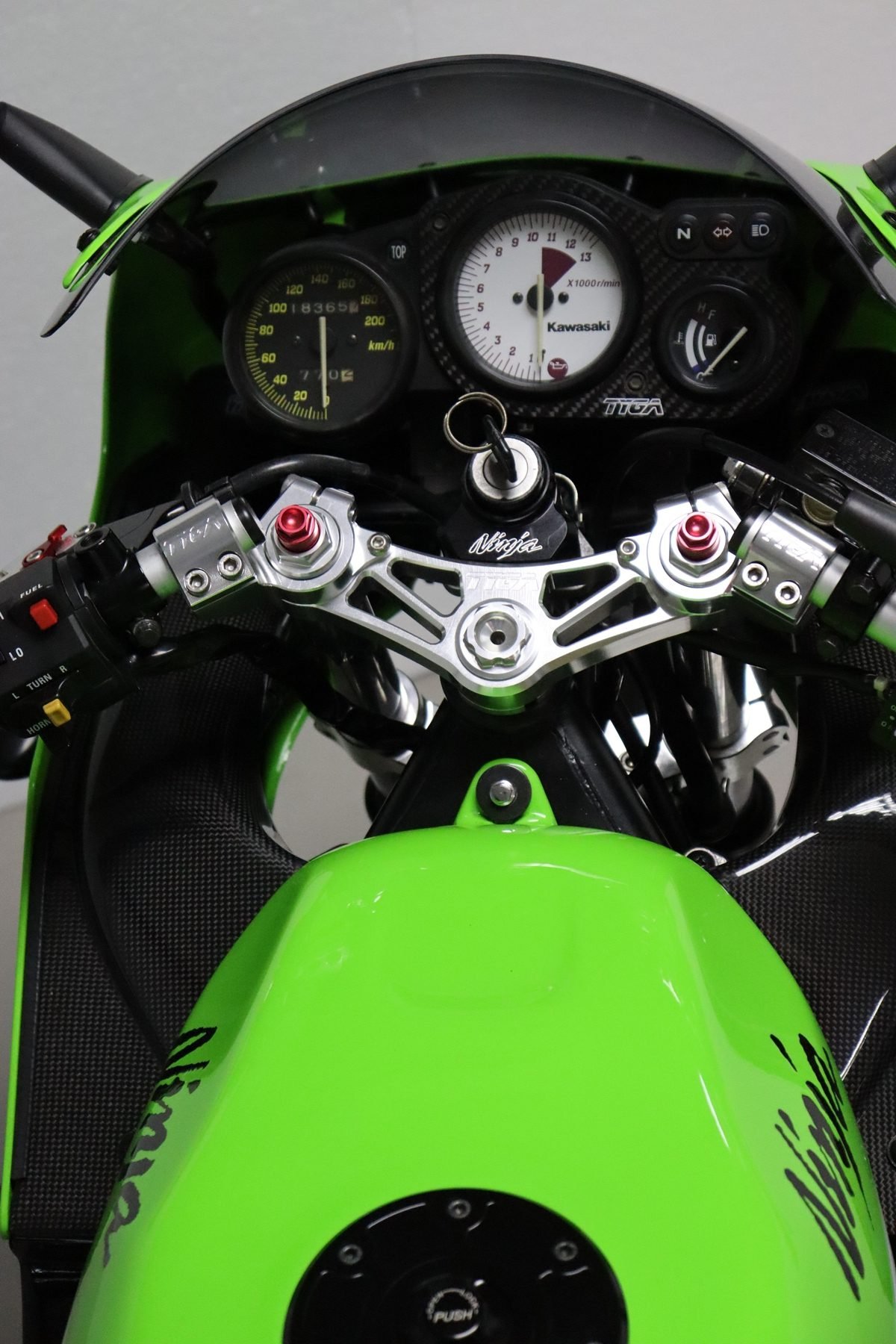

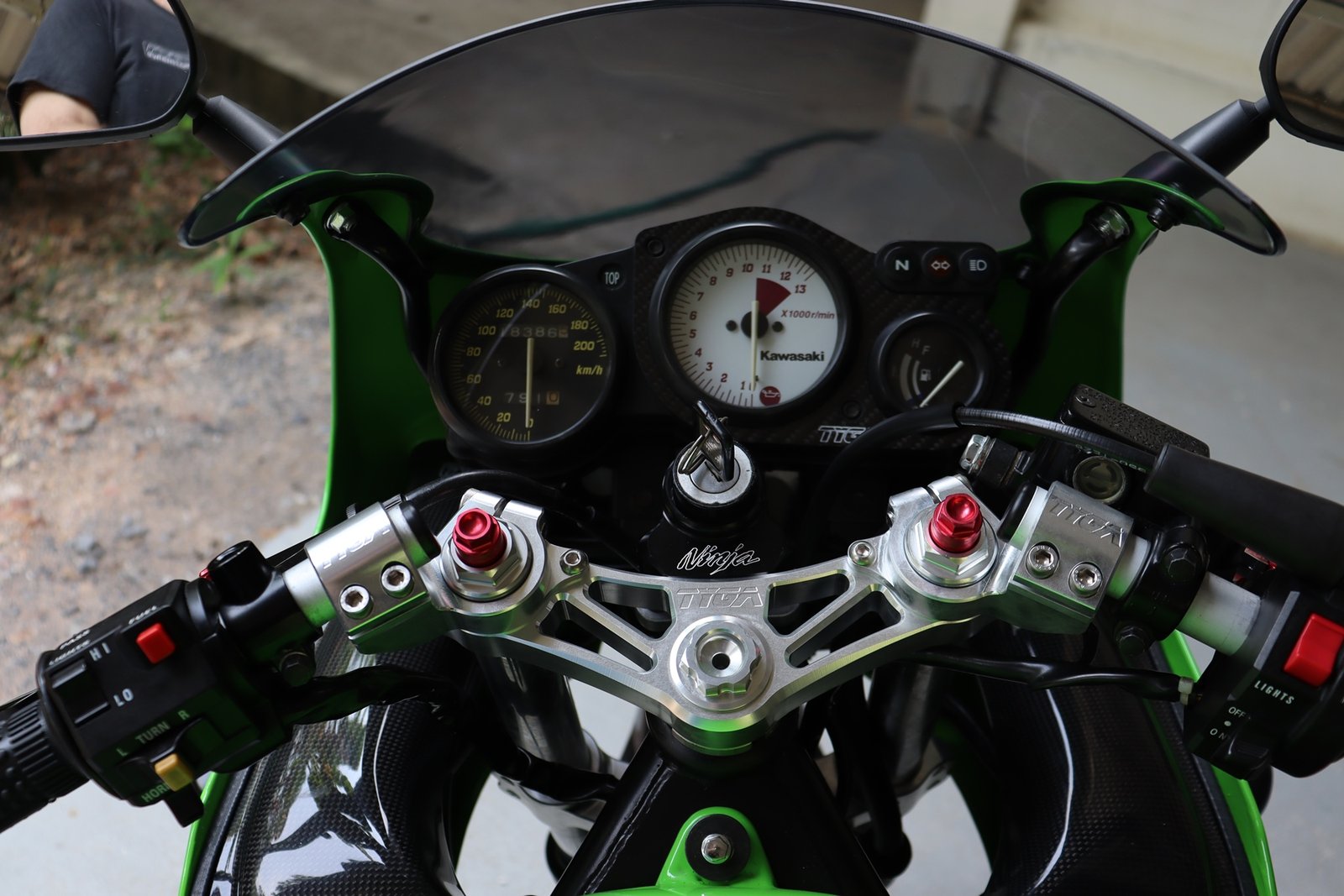

The top clamp has the ‘bolt-on’ ignition switch/lock holder fitted, which can be removed for racing.

The Steering stoppers can be rotated for adjustable steering lock position, giving maximum steering lock for street application, or a reduced angle for racing.

Designed and CNC machined in house by TYGA from aircraft spec 6061-T6 alloy.

Tightening recommendations:

• Lower clamp pinch bolts: 23Nm.
• Top clamp pinch bolts: 23Nm.
