Carb Service Kit, 7 pieces, Honda NSR250 MC16, MC18, MC21 (1 carburettor)

Description

Carb Service Kit, 7 pieces, Honda NSR250 MC16, MC18, MC21 (1 carburettor)

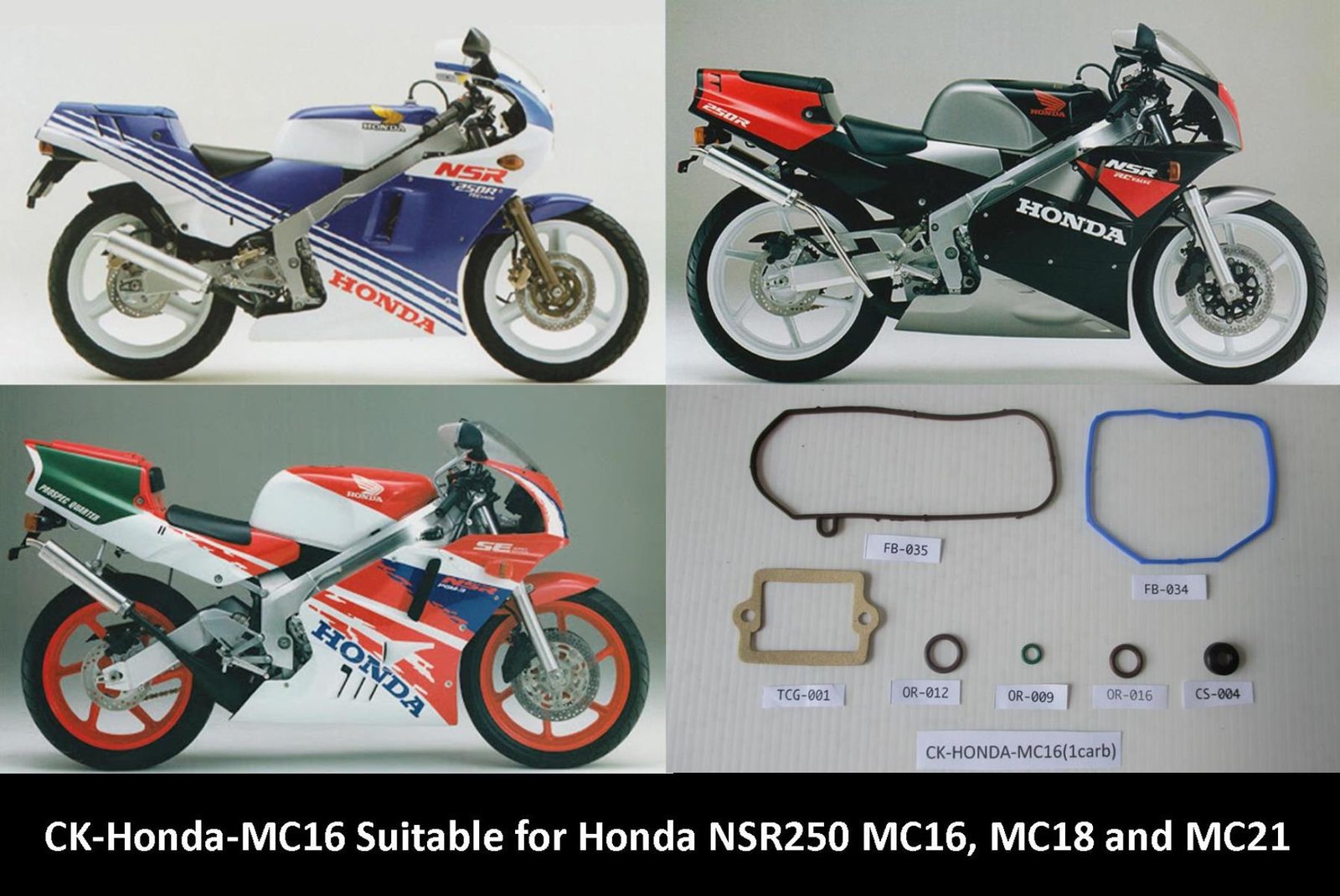

LiteTek Carburettor Seal Kit to suit: Honda NSR250 MC16, MC18 and MC21
Made from long lasting, ethanol resistant elastomers and Viton®

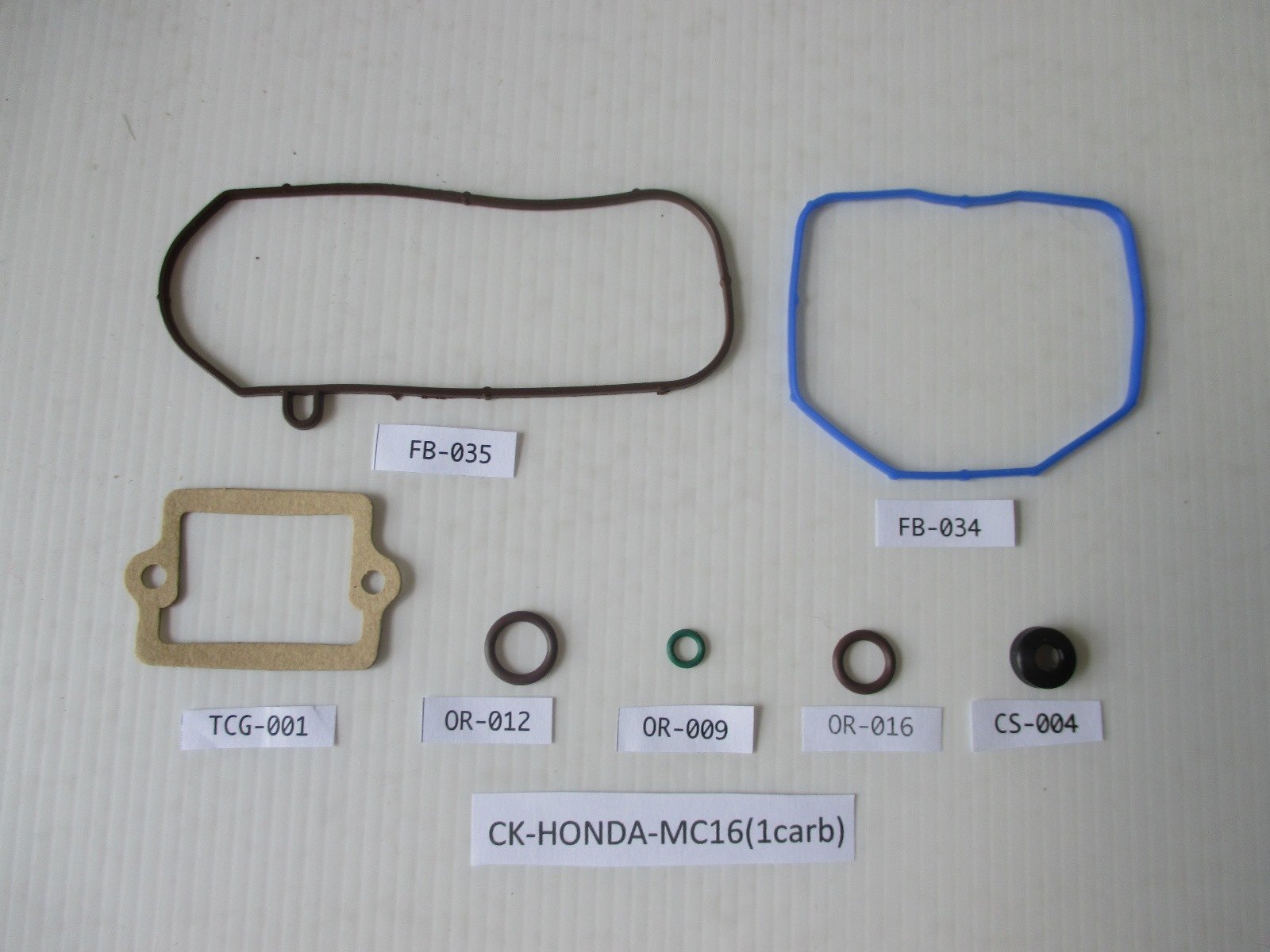

Consist of the following items:

• 1x FB-034 Float Bowl Seal, Material: Flourosilicone (Part of Honda kit: 16010-KM9-505)
• 1x TCG-001 Top Cap Gasket, Material: Gasket Paper (Part of Honda kit: 16010-KM9-505)
• 1x FB-035 Body O-Ring, Material FKM ((Part of Honda kit: 16010-KM9-505)
• 1x OR-009 Drain Screw O-Ring, Material: Viton 70A (Part of Honda kit: 16010-KM9-505)
• 1x OR-016 O-Ring, Material: Viton FKM (Part of Honda kit: 16010-KM9-505)
• 1x OR-012 Fuel Pipe O-Ring, Material: FKM (Part of Honda kit: 16010-KM9-505)
• 1x CS-004 Choke Plunger Cap  Material: HNBR (Part of Honda kit: 16046-KV3-950)

NOTE: this is to service one carburettor, please order CK-Honda-MC16 for service kit 12 pcs for both carbs.

Suitable for the following carbs:

• MC16: TA10
• MC18 ’88: TA20
• MC18 ’89: TA21
• MC21: TA22
