Description
Carb Service Kit A, 36 pieces, Suzuki GSXR400 (GK76)
LiteTek Carburettor Seal Kit to suit: Suzuki GSXR400 (GK76)
Made from long lasting, ethanol resistant elastomers and Viton®
Consist of the following items:
- 4x FB-007 Float Bowl Ring, Material: Flourosilicone (OE part number: 123258-33C00)
- 4x OR-005 Pilot Screw O-Ring, Material: Viton 70A (OE part number: 13295-29900)
- 4x WS-001 Pilot Screw Washer, Material: Stainless Steel (OE part number: 13291-2990)
- 4x JH-004 Jet Housing Seal, Material: Viton 70A (OE part number: 13251-33C00)
- 4x OR-001 Top Cap O-Ring, Material Viton 65 (OE part number: 13251-06C10)
- 4x OR-010 Float Mount O-Ring, Material: Viton 70A (OE part number: 13374-44030 superseeded by 13374-35C00)
- 4x OR-018 Slide Housing O-Ring (OE part number: 13278-47090)
- 4x OR-015 Main Jet Housing O-Ring, Material: Viton70 A (OE part number: 13294-33C00)
- 4x OR-010 Pilot Merge Cavity O-Ring, Material: Viton 70A (OE part number: N/A)

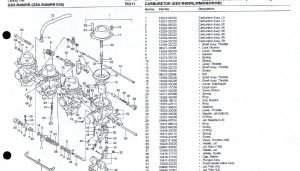

Parts diagram for the GSXR400 carburettors:
