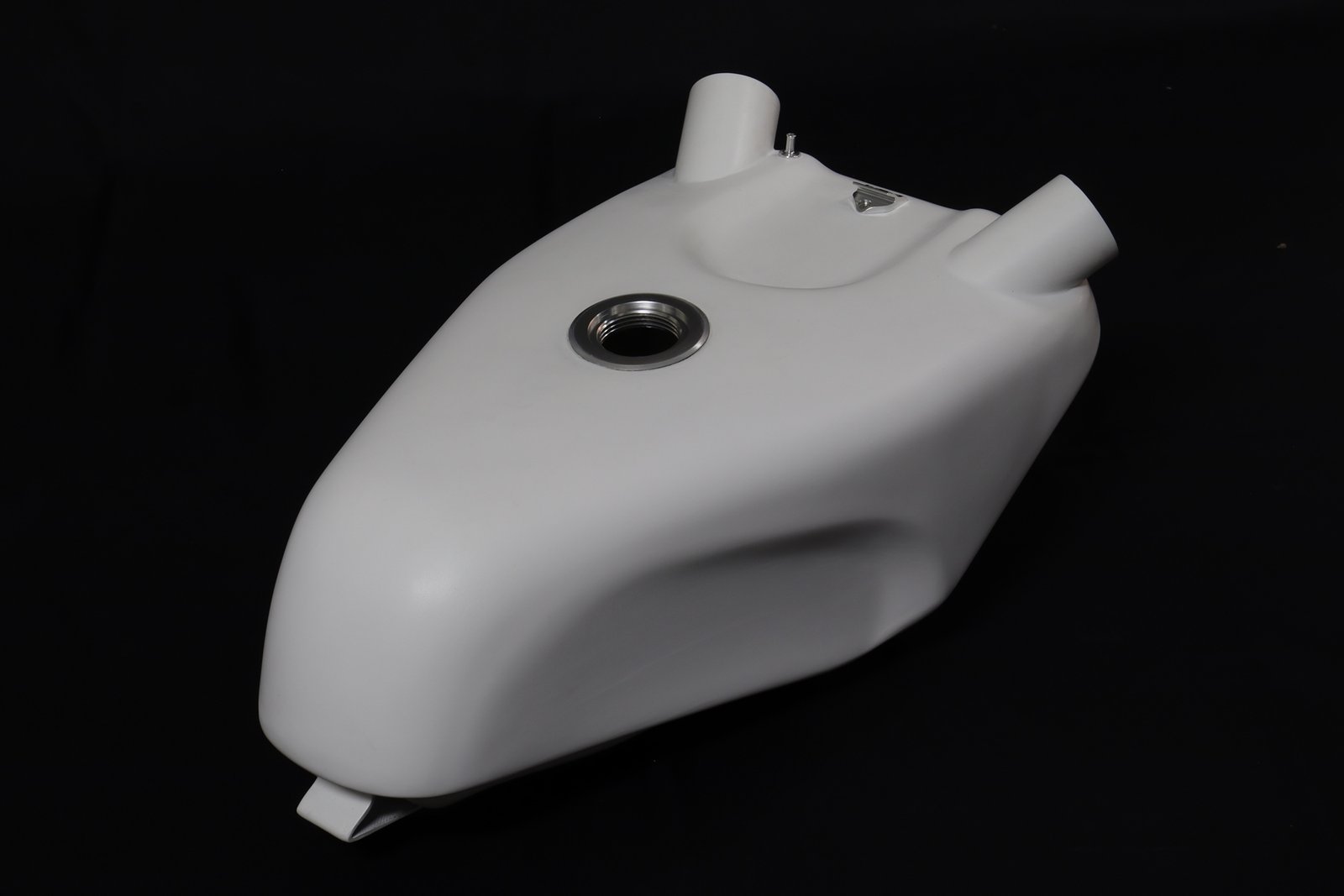

Fuel Tank, GRP, RS250R NX5 (Ram Air Type)

Description

Fuel Tank, GRP, RS250R NX5 (Ram Air Type)

Top quality reproduction of the early ram air version NX5 fuel tank in fiber glass.

Finished in primer ready for painting and using specially formulated epoxy resin for fuel resistance, this tank has been tested with a range of fuels from 95 unleaded pump fuel, Avgas 100LL to E85 (85% ethanol). Laminated with a Kevlar layer for abrasion and puncture resistance, this fuel tank is both strong and light ( 2.45 kg)

Unlike most aftermarket fuel tanks, this one is designed so that there is no compromise with installation and through use of high quality CNC machined aluminium inserts and following the stock shape, the following stock parts can be used (not included):

• Fuel Cock
• Breather
• Front strap
• Stock mounting rubbers
• Filler cap and seal

Note for filler cap and seal we can supply our own TYGA version (Cap: TYLY-0178A, Seal: BPSY-0238). Note the filler cap, seal and the above list of parts are not included with the fuel tank and needs to be purchased separately.
