Description

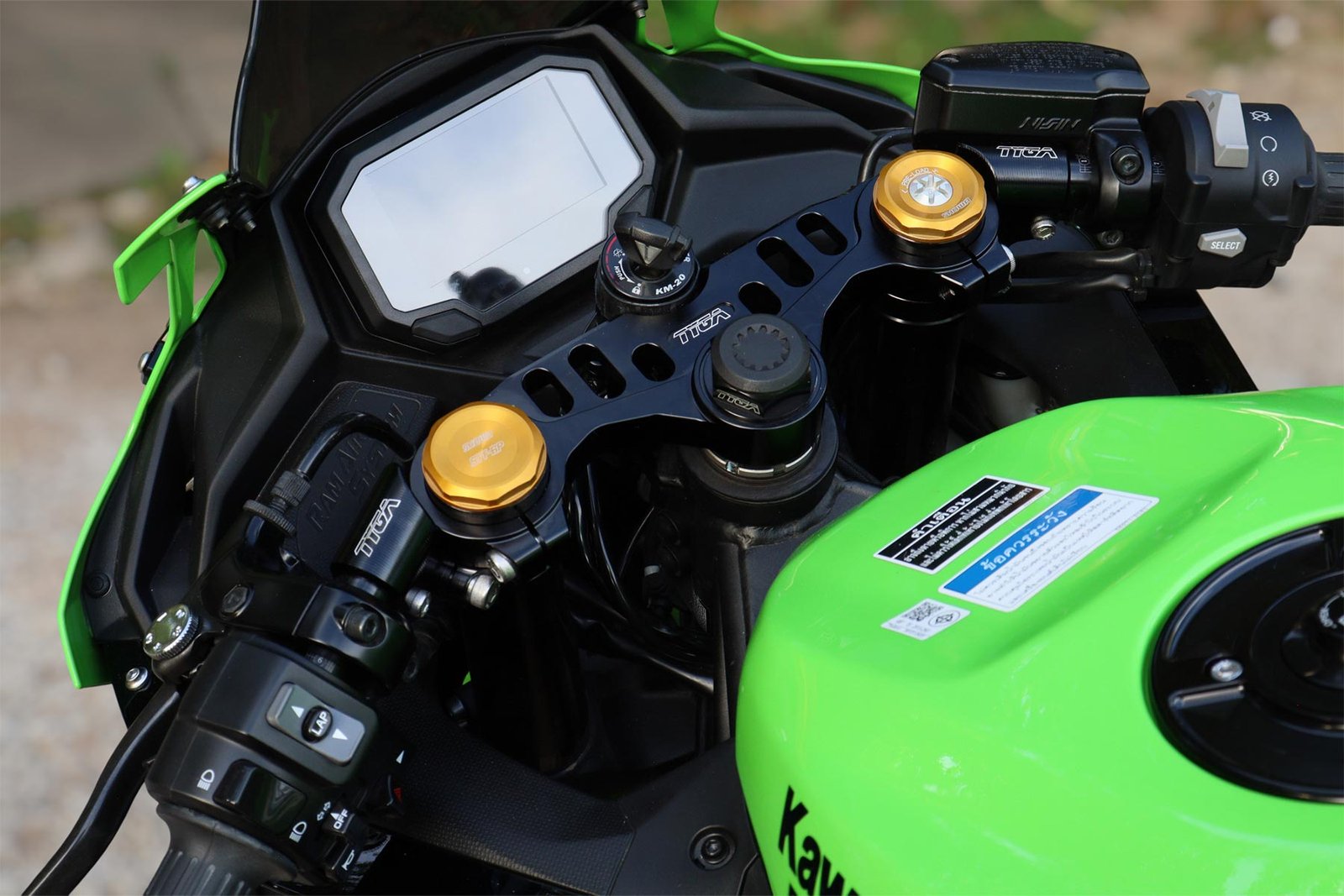

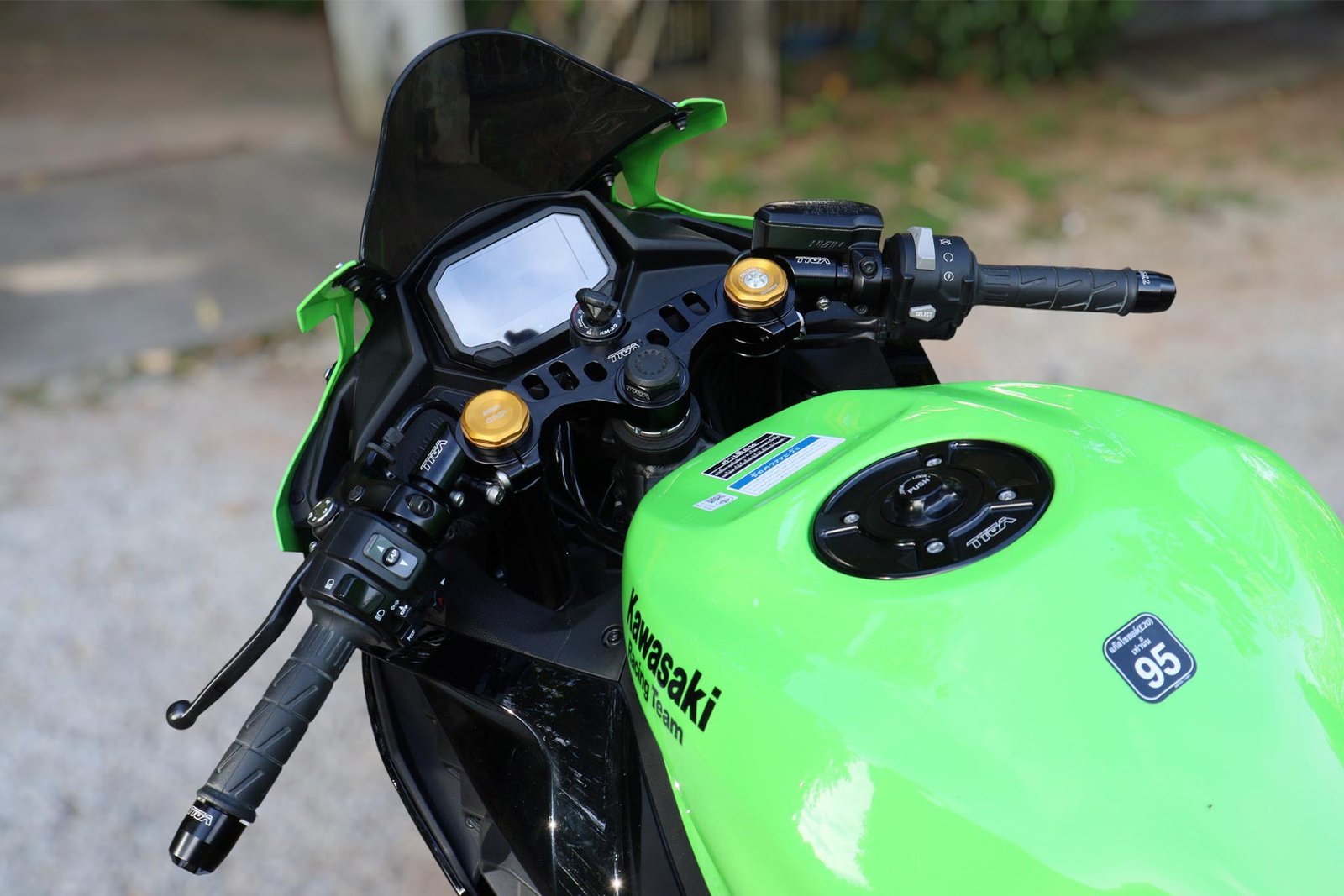

Top Triple Clamp, and Handlebar Clamp Set, Black, Ninja ZX-4R(R)

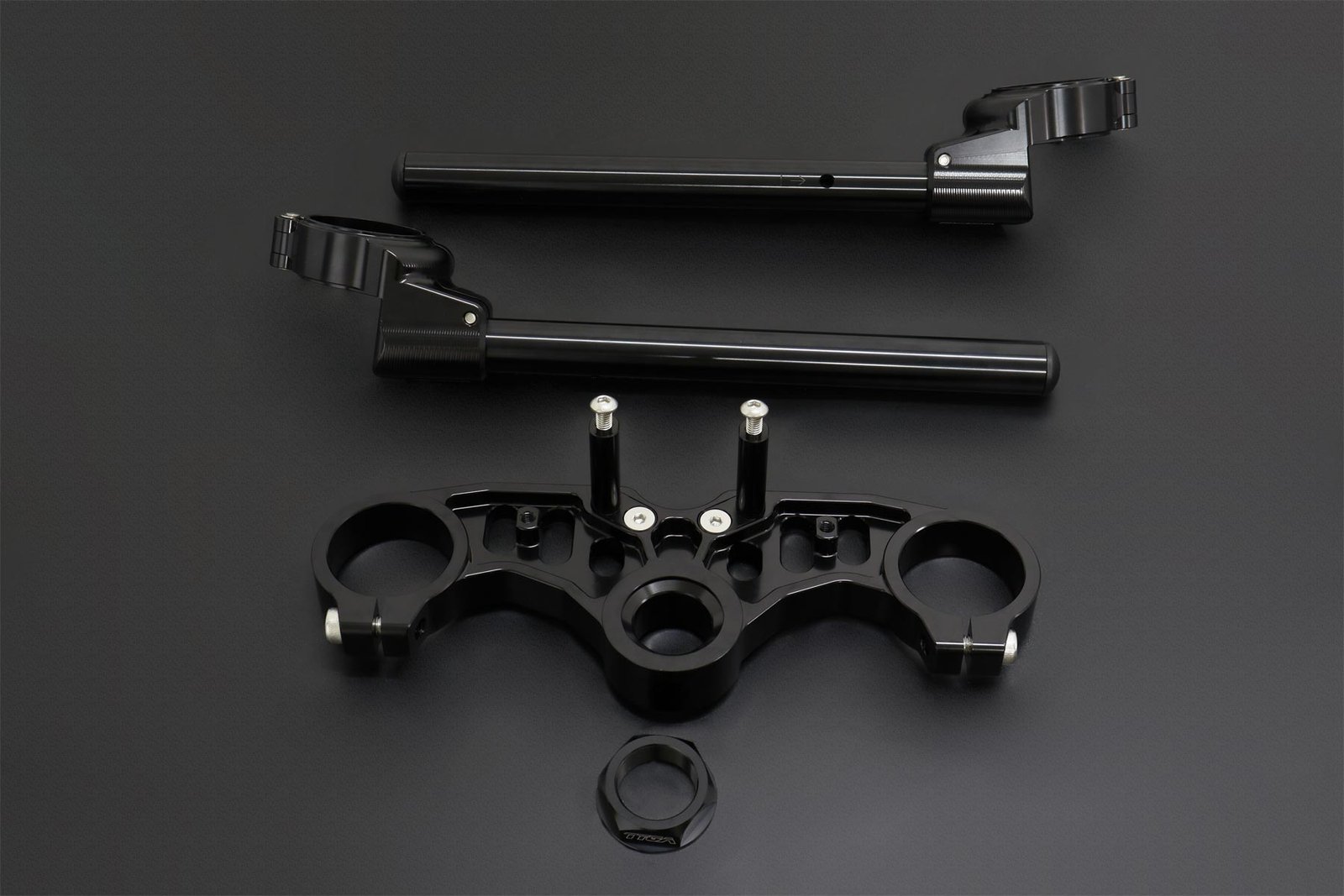

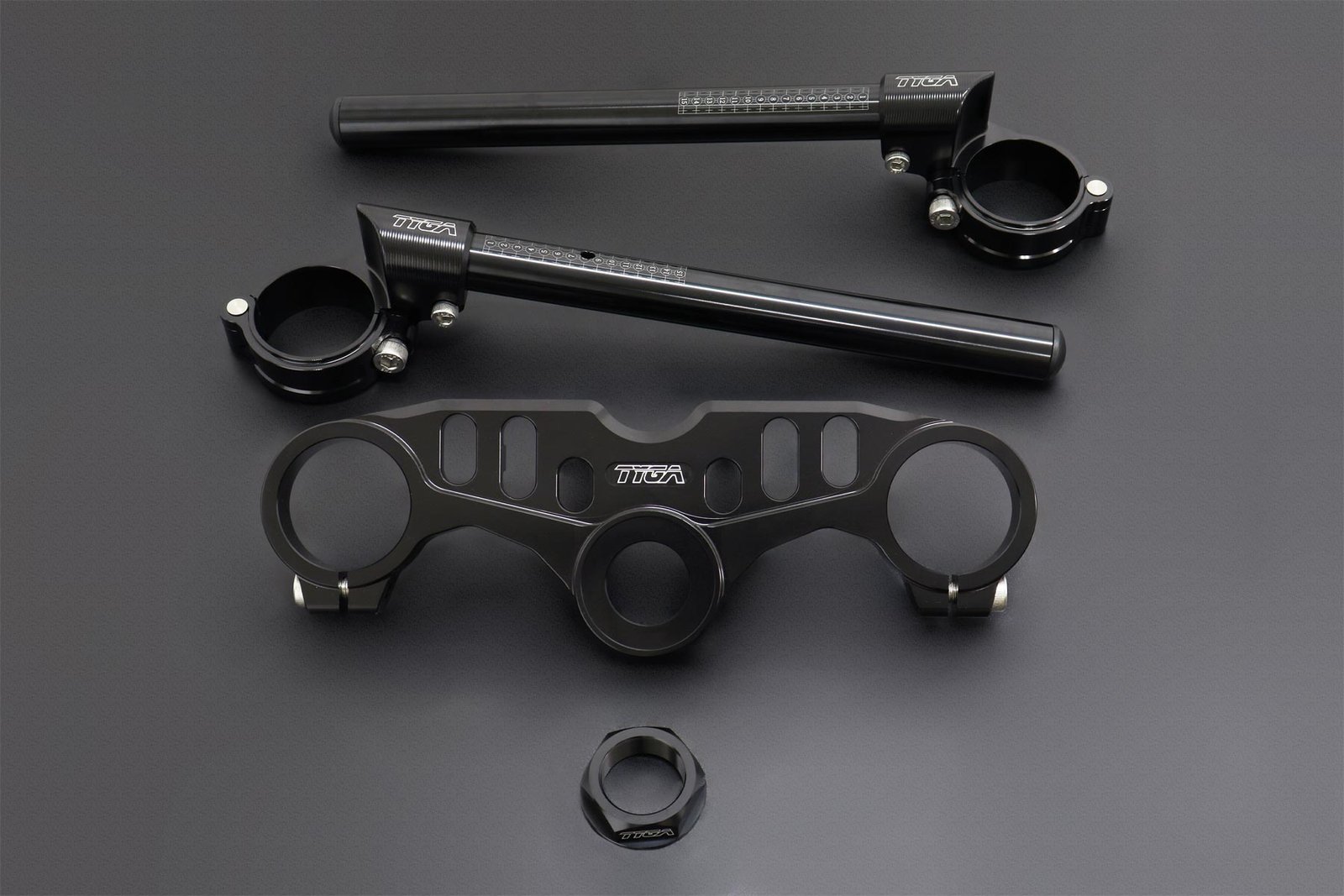

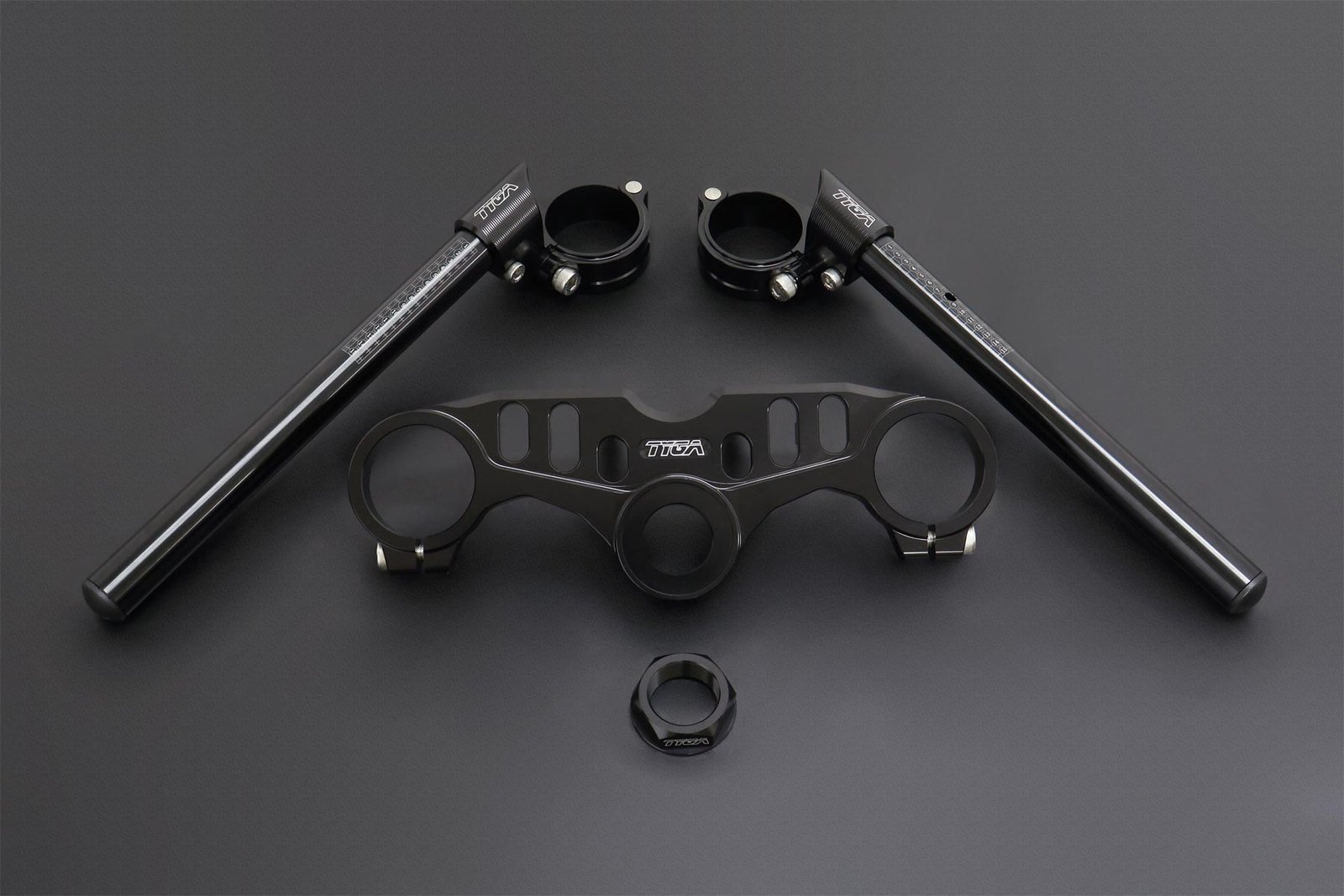

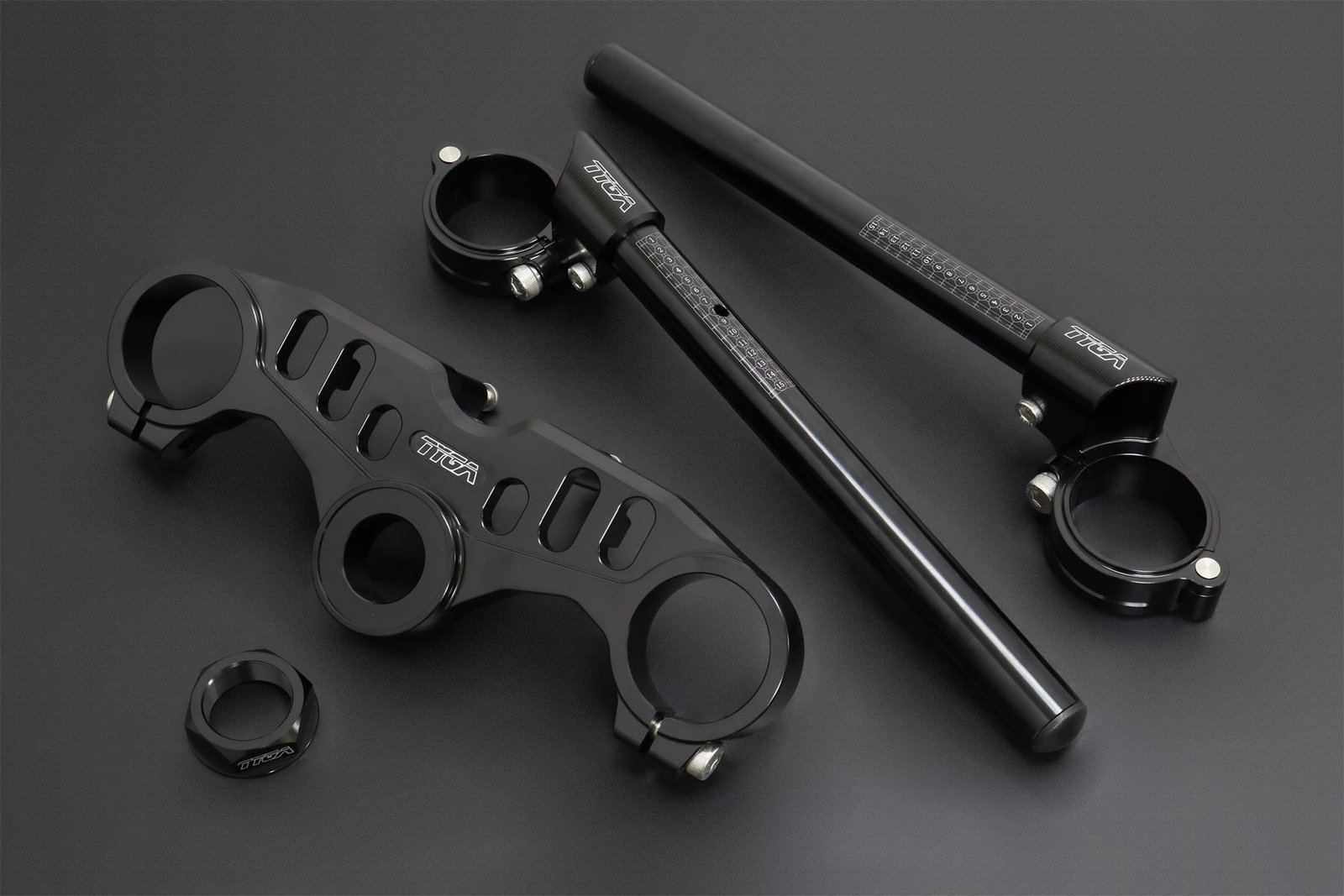

Consisting of the following products:

1x TYLY-1373 Top Triple Clamp Set, CNC Black, Ninja ZX-4R(R)
1x TYLY-1375L Handlebar Clamp, Left, Hinge Type, Black, Ninja ZX-4R(R)
1x TYLY-1375R Handlebar Clamp, Right, Hinge Type, Black, Ninja ZX-4R(R)
1x TYLY-1376L Handlebar Tube, Index Mark, Left, Black, NinjaZX-4R(R)
1x TYLY-1376R Handlebar Tube, Index Mark, Right, Black, NinjaZX-4R(R)
1x TYLY-1374 Top Triple Clamp Nut, Black, Ninja ZX-4R(R)

The Handlebar angle is 7 degrees down.

Top Triple Clamp bores: 45mm
Handlebar Clamp(s): 45mm
For use with Handlebar tubes of Ø 22.2mm (5/8″)

The Handle bar tubes supplied in this set features index marks for easy and consistent assembly, and complete with bar end weights.

Switchgear location holes are pre-drilled in both the left and right handlebar tube.

Please follow the fitting instructions for the top triple clamp, then for the handlebars, We advise to remove the clutch lever and front brake master assemblies first, then remove the screws that secure the switchgear and move them out of the way and you can then pull the bars free of the bike. Then swap over the left hand grip and the throttle assembly and fit back on the bike as a reverse of the disassembly.
