Triple Clamp Set, CNC, Silver 3D Top Triple Clamp, Black Lower Clamp, CBR600RR Forks to fit MC18

Description

Triple Clamp Set, CNC, Silver 3D Top Triple Clamp, Black Lower Clamp, CBR600RR Forks to fit MC18

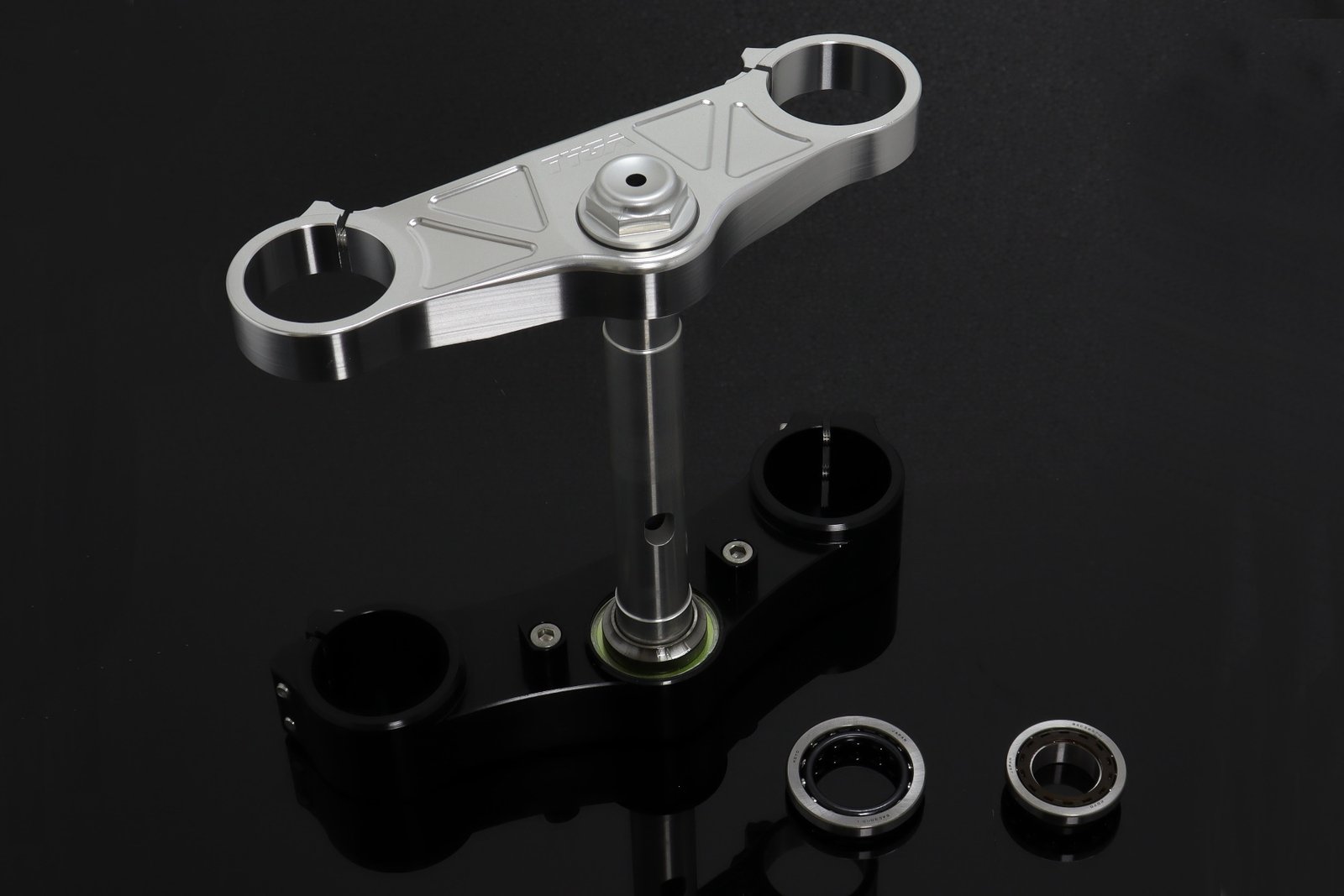

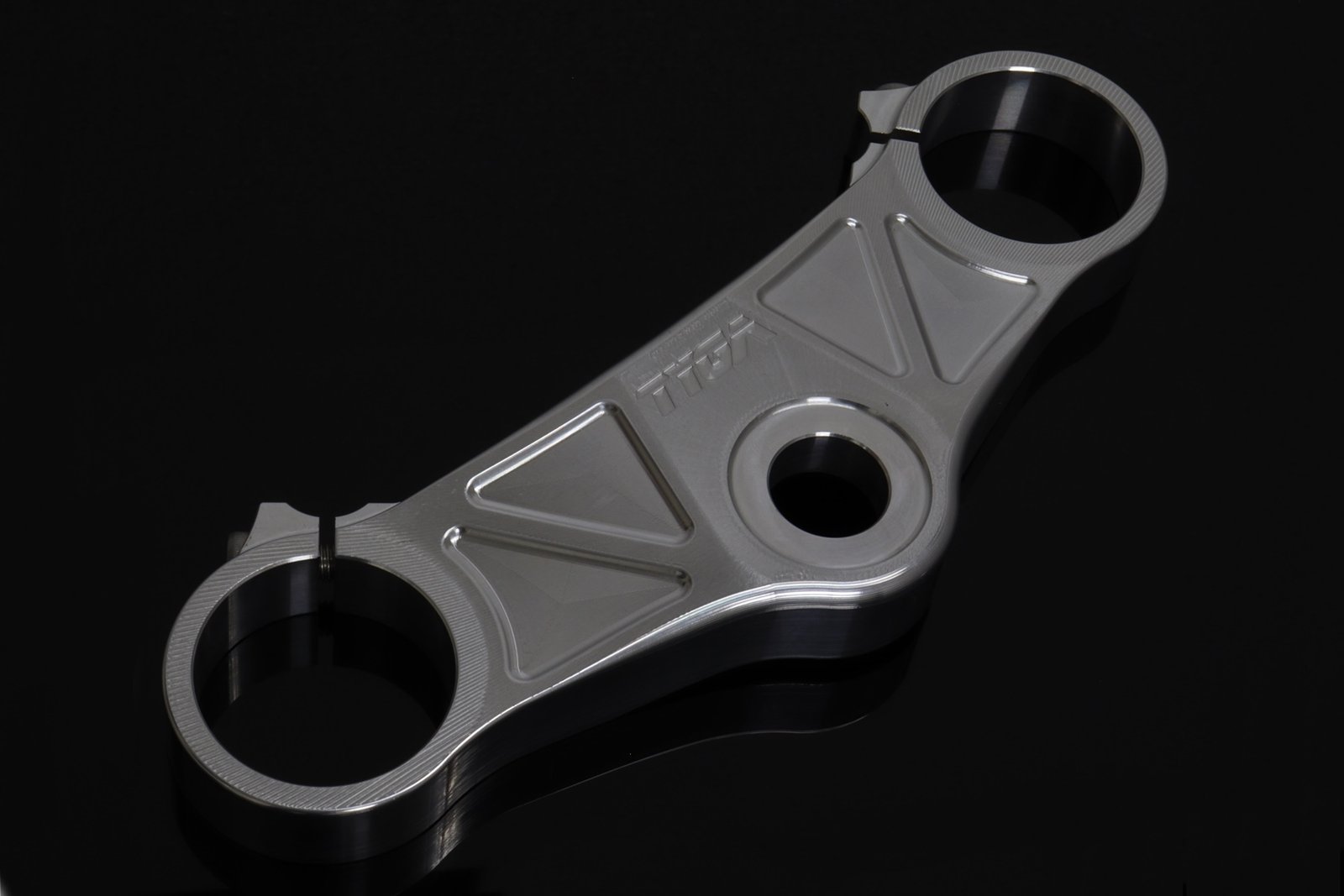

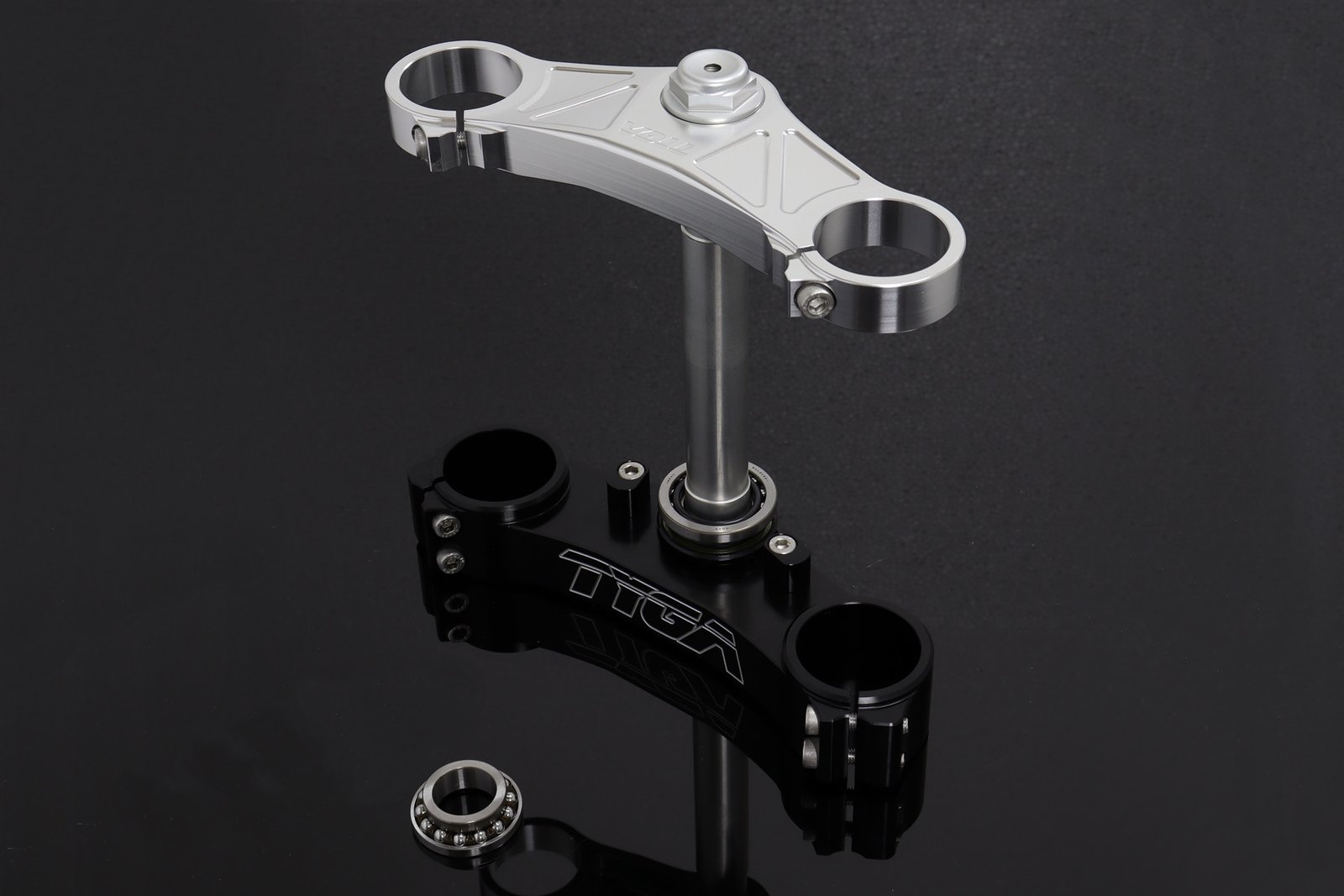

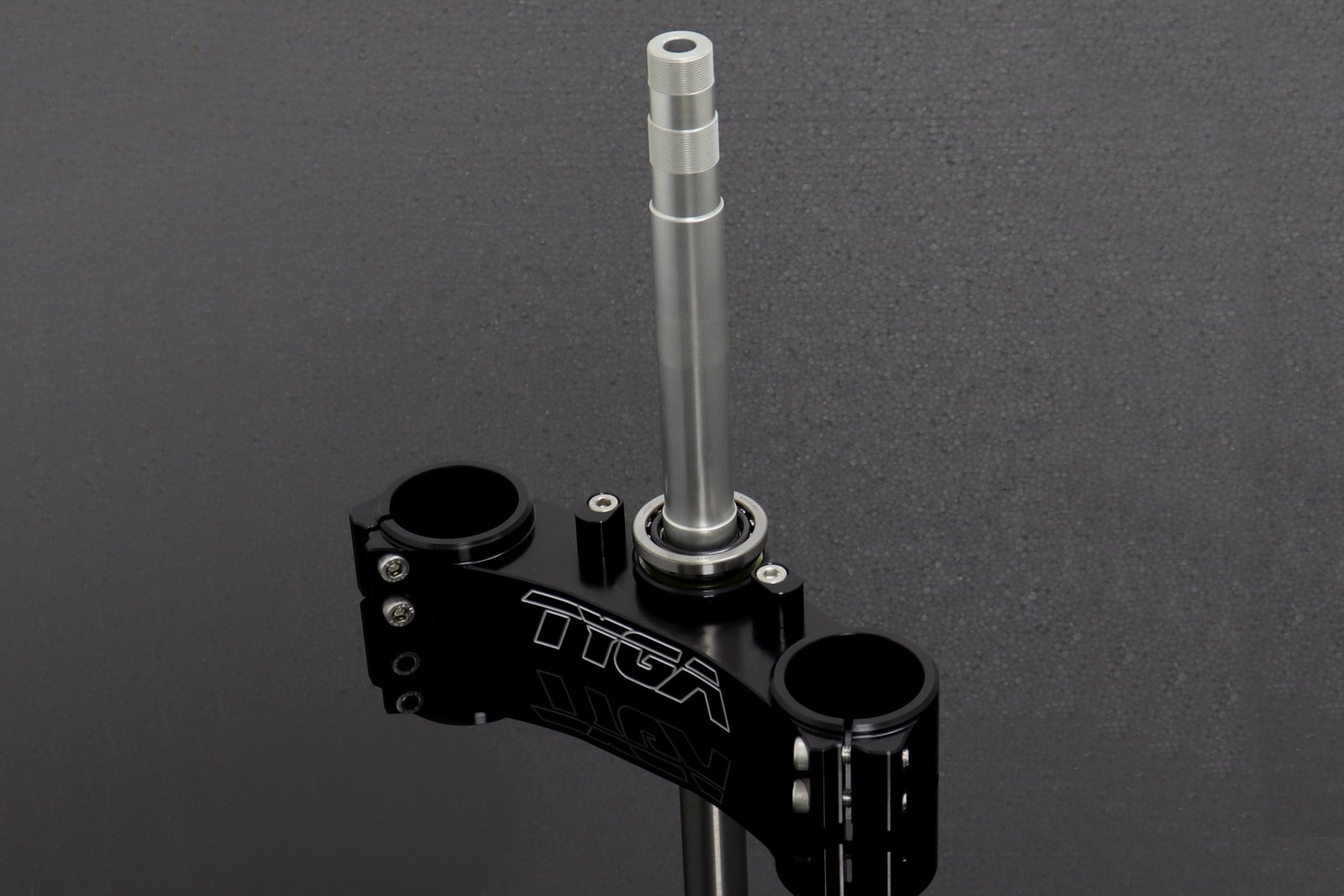

CNC machined TYGA  triple clamp set for the NSR250 MC18 (1988/1989) to take 53 mm diameter CBR600RR forks. (For later model CBR600RR which use 54 mm forks, please request this in the order comment box)

Designed and machined in-house by TYGA from aircraft spec 6061-T6 alloy. FEA tested and developed for increased strength without unnecessary weight increase.

They are delivered ready to fit with all necessary bearings and lower seal, and even an aluminium top clamp nut, to complete the transformation.

The Steering stoppers are reversible, giving maximum steering lock for street application, or a reduced angle for racing.

Note this is a race triple clamp set and there is no provision for ignition lock or steering lock when used on the MC18. The ignition lock can be relocated to the rear frame to fairing stay on the left side

Tightening recommendations:

• Lower clamp pinch bolts: 23Nm.
• Top clamp pinch bolts: 23Nm.
