TYGA Flywheel Puller/RC Valve Remover Combo Tool, NSR250

Description

TYGA Flywheel Puller/RC Valve Remover Combo Tool, NSR250

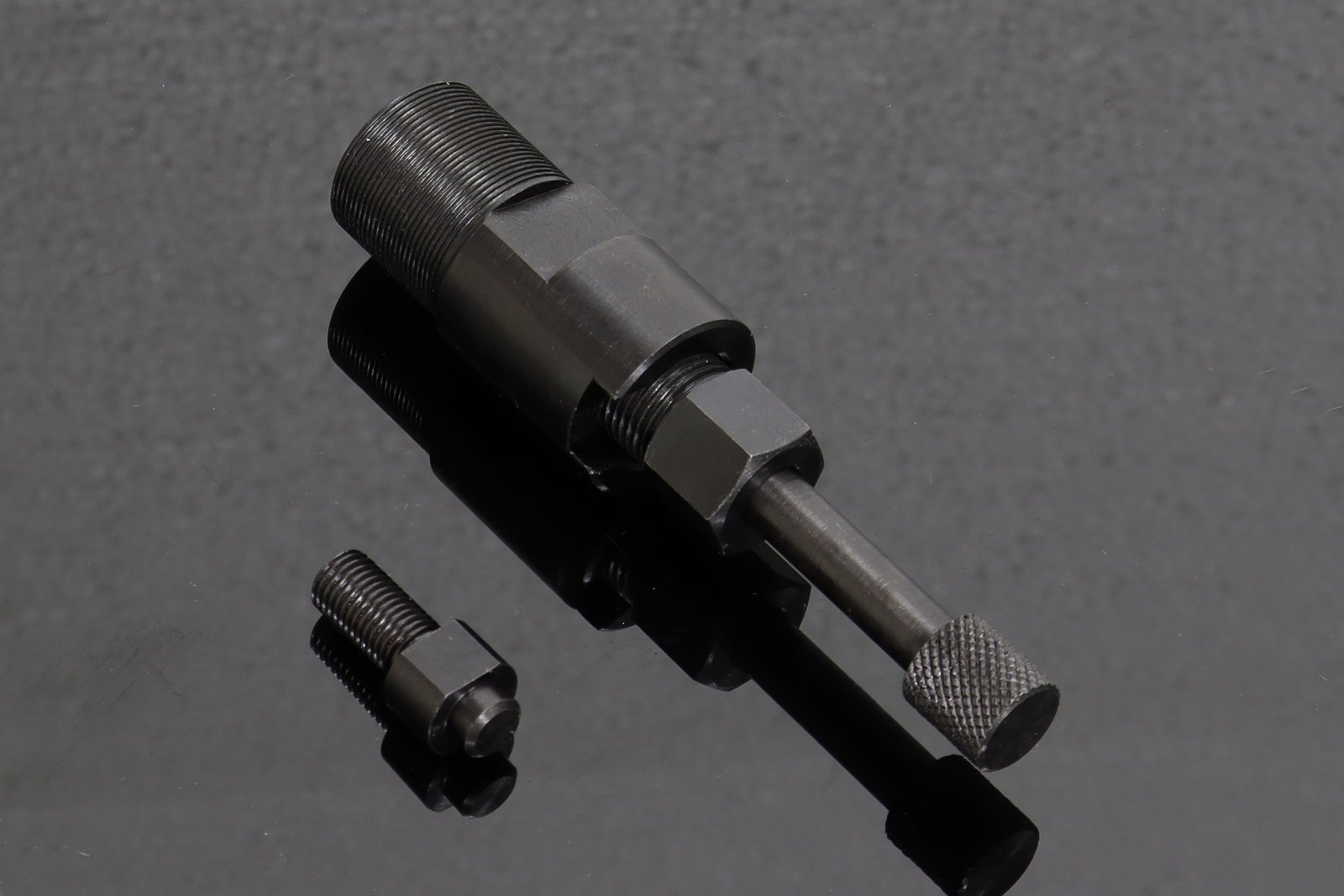

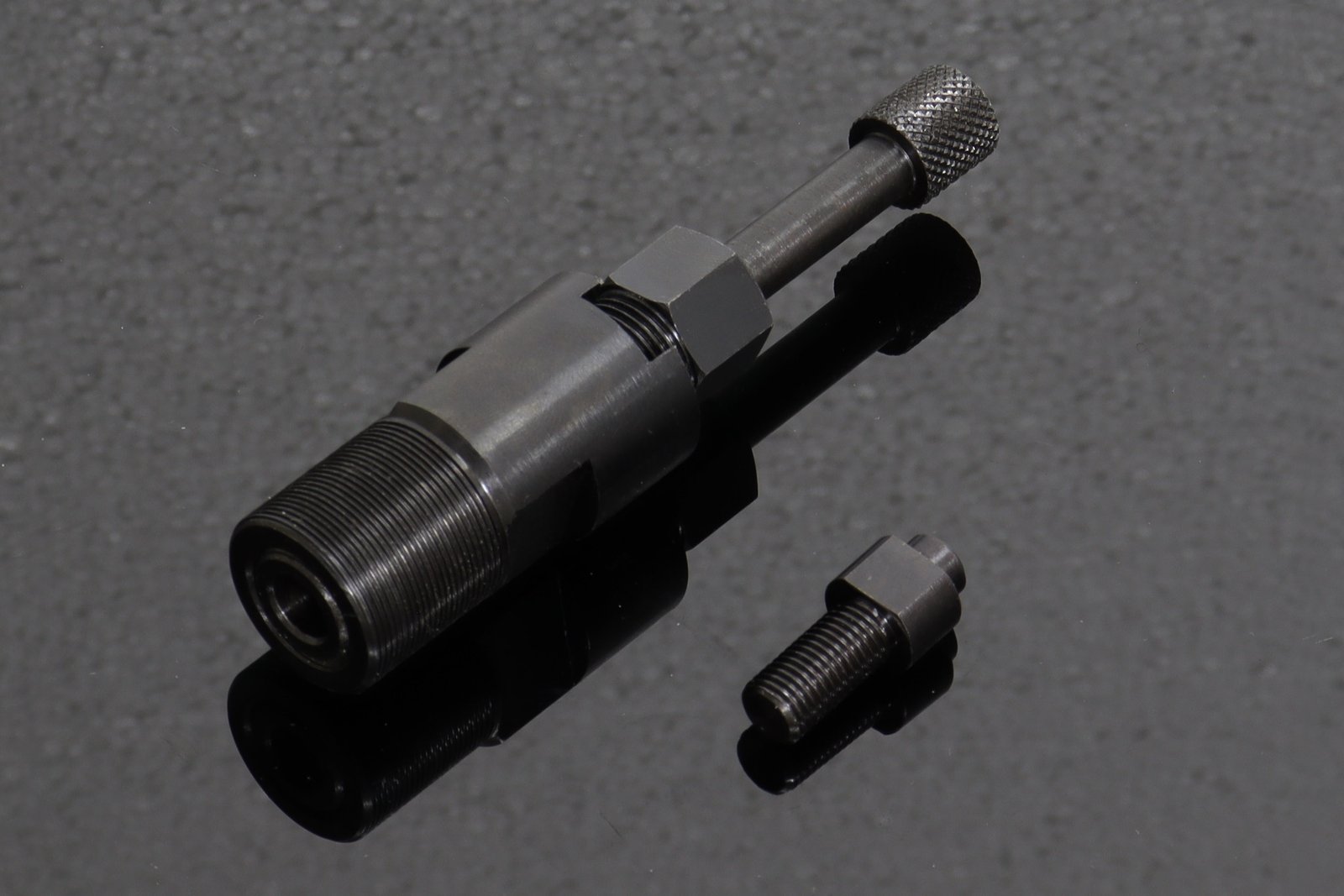

This new, TYGA designed 2 in 1 combination tool is a flywheel puller and RC valve removing tool all in one handy package.

Saves space in your toolbox, and less clutter on the work bench.

How to use:

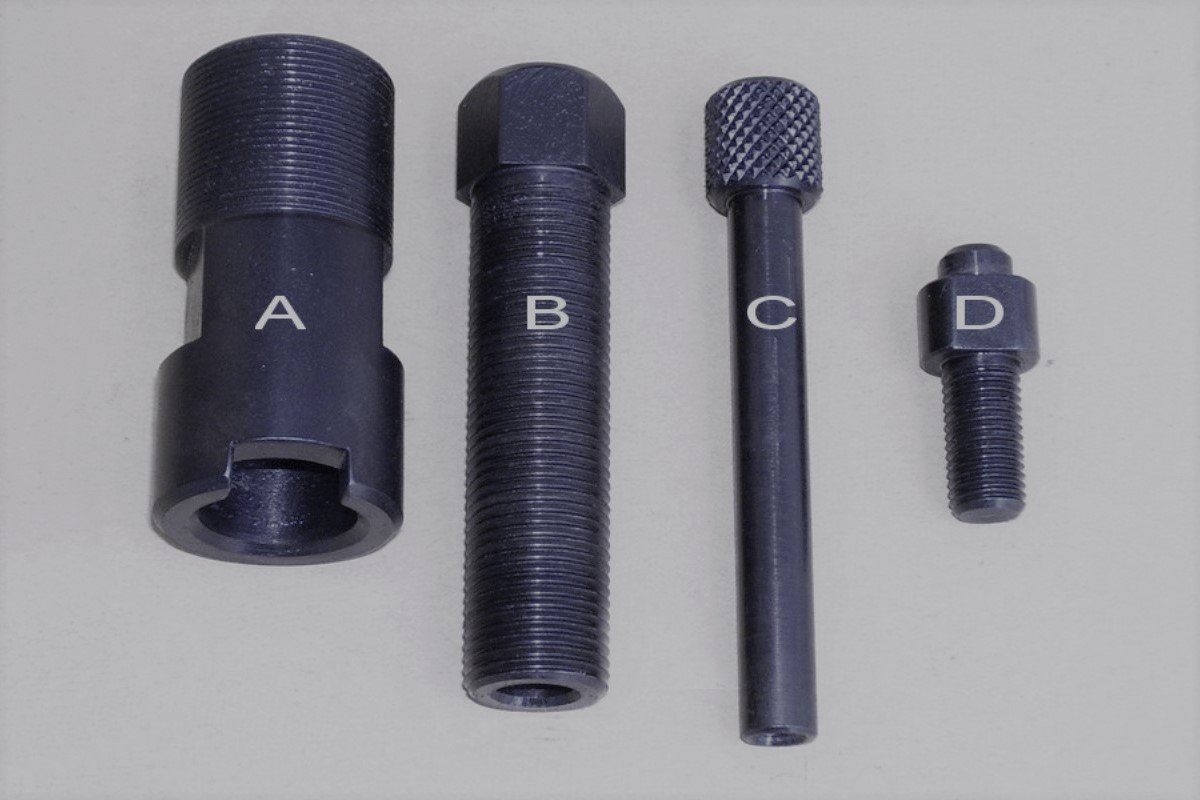

Familiarise yourself with the parts (see picture).

The tool is delivered ready for use as a flywheel puller. Just screw part “D” into the crank, then wind the (left hand) threaded main body (part “A”) into the flywheel centre and pop the flywheel off by rotating part “B” clockwise. Part “C” is not used.

For removing the RC valve shaft remove part “B” completely and refit from the opposite end, screwing all the way home. Then slide in the part “C”. Position the tool over the valve shaft and wind part “C” onto the RC valve shaft (left hand thread). When fully home just rotate part “B” anti-clockwise to pull out the shaft. The RC valve shaft seal and E-clip will probably be damaged in the process, and should be replaced. Part “D” is not used.

22mm and 19mm spanners (not supplied) are required for correct operation.

*Note* This tool can be used on the NSR150 to remove the RC valve shaft, but will not fit the flywheel. Please use TYTO-0007 for this job.
