TYGA Tail Light, NC30/RC30

Description

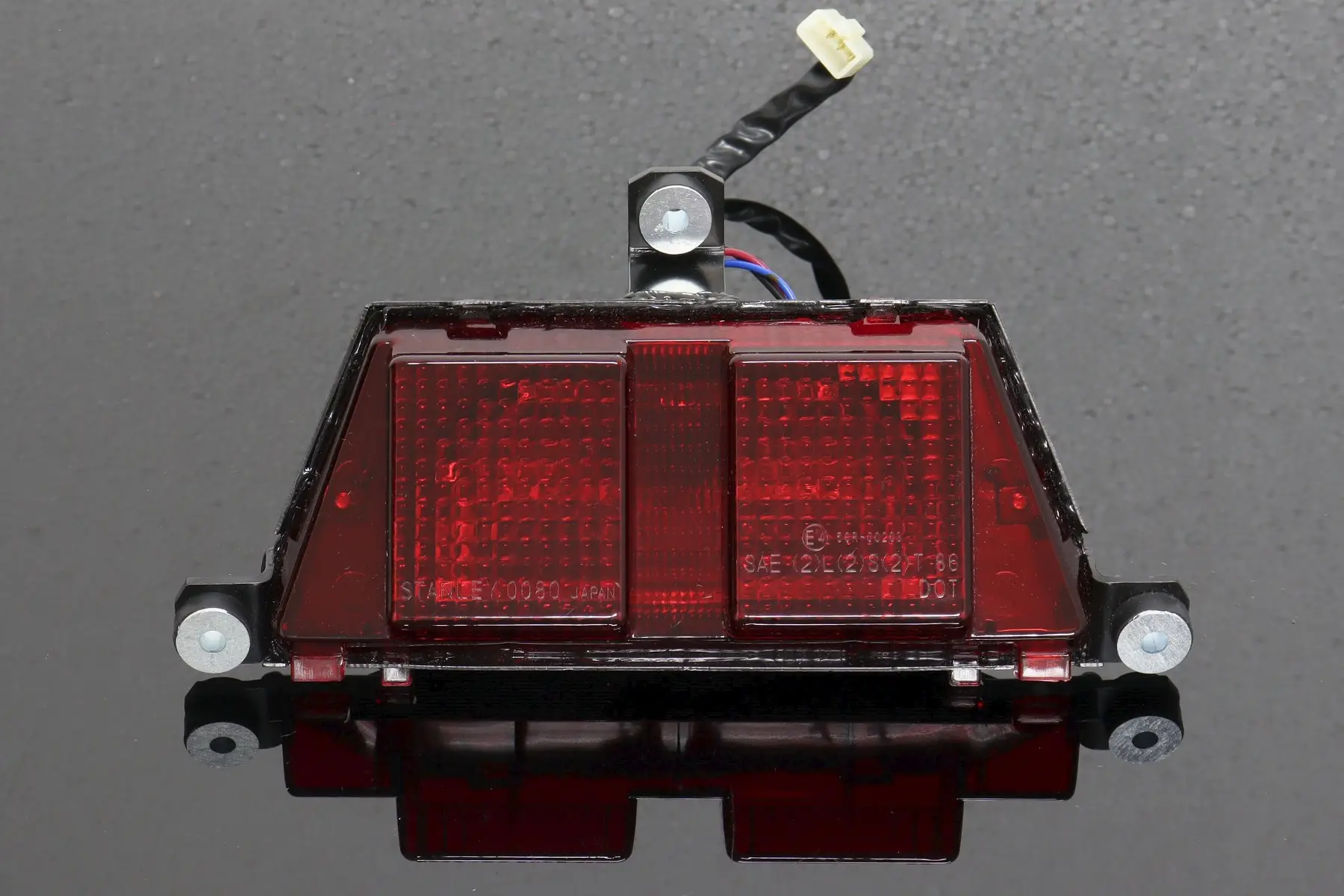

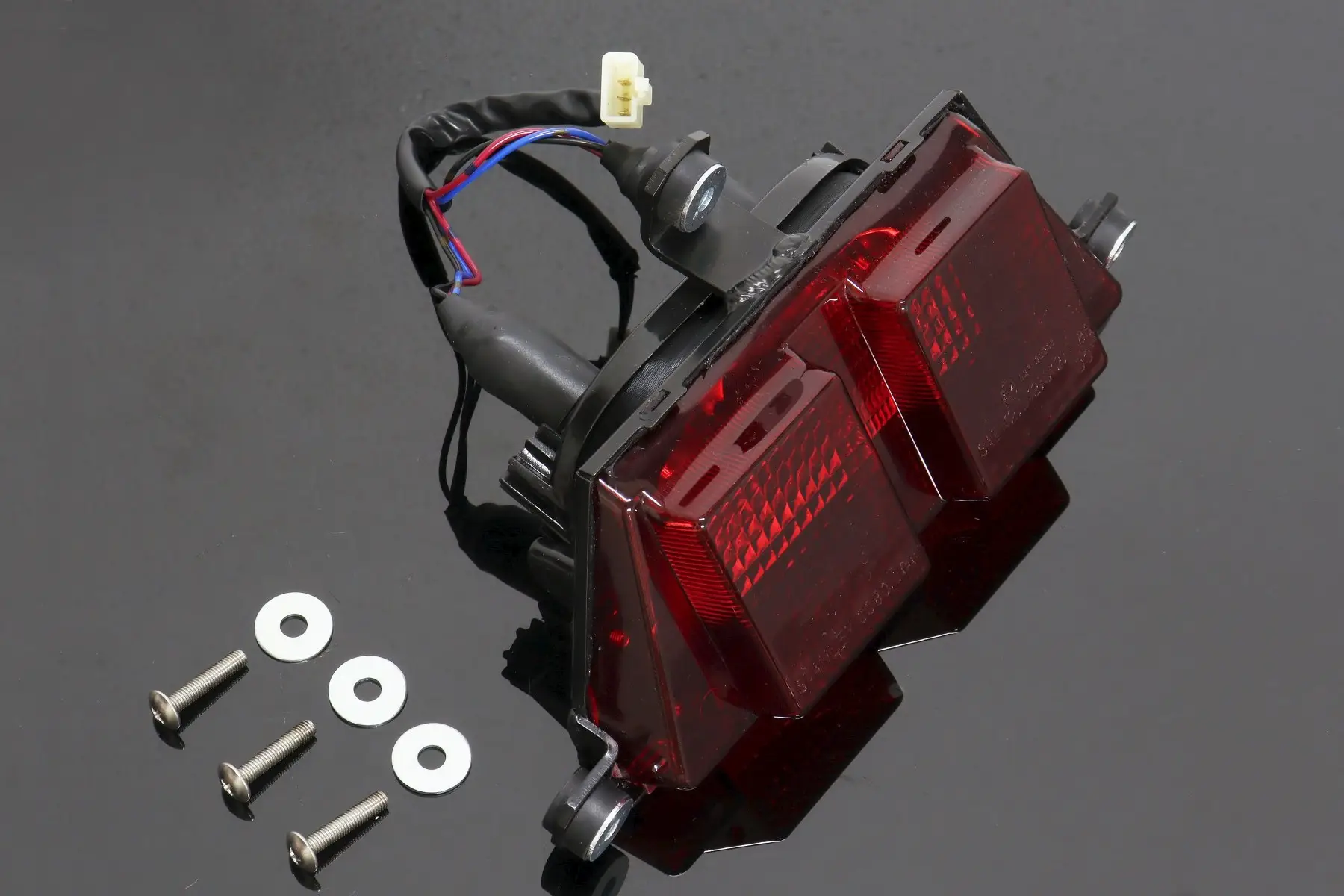

TYGA Tail Light, NC30/RC30

TYGA designed tail light for the NC30/RC30. Also works perfectly on your RC36-2, RC30 Tribute.

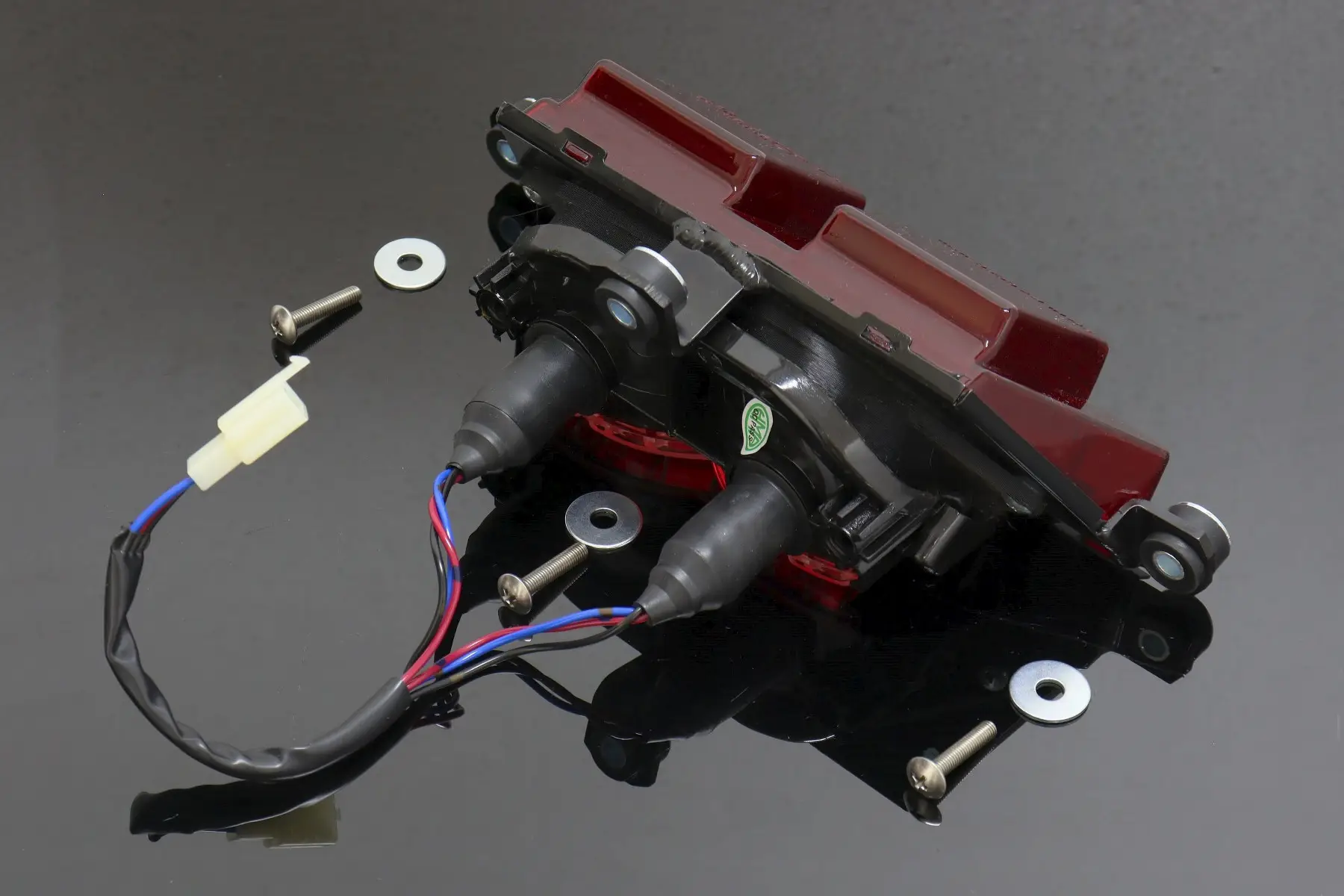

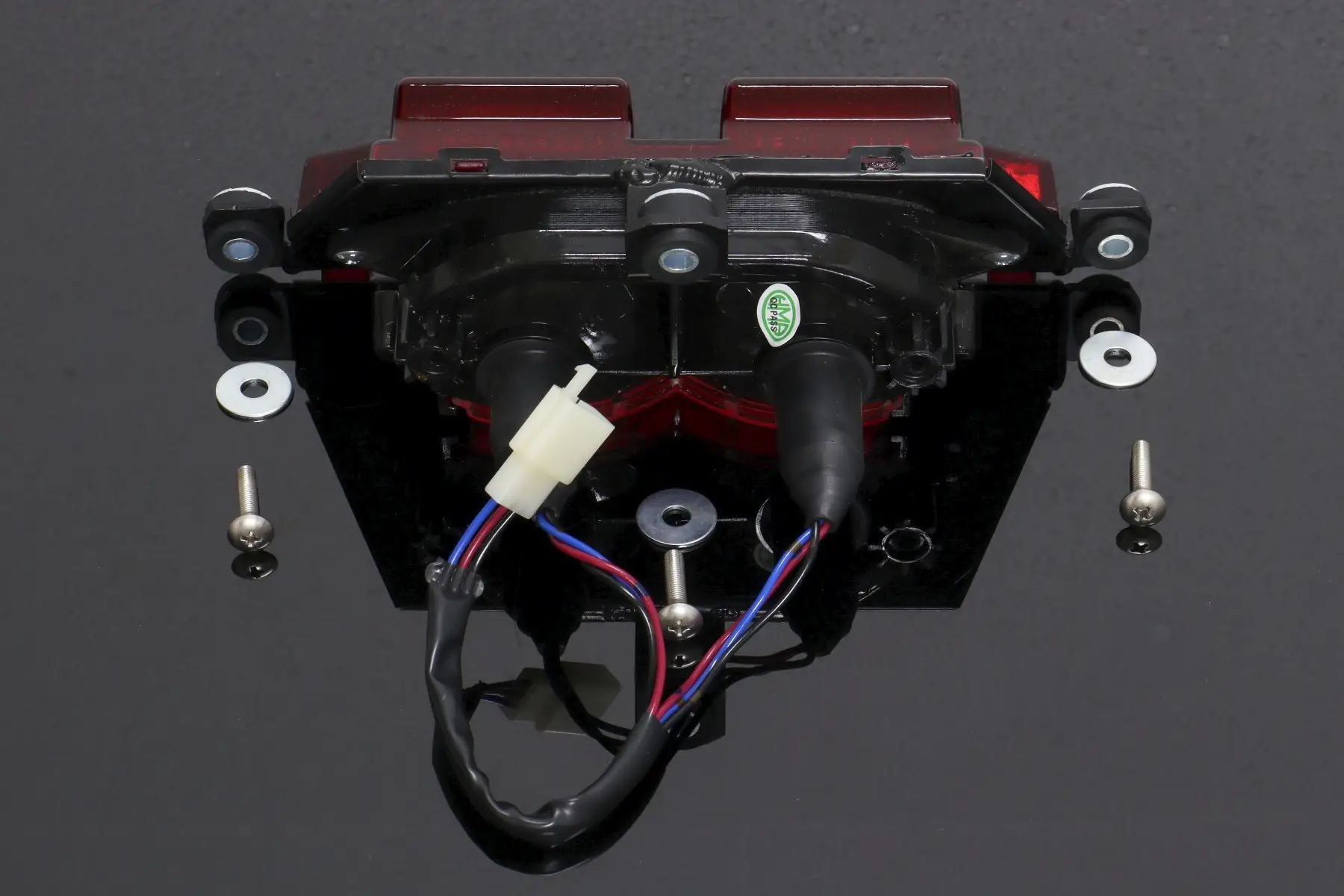

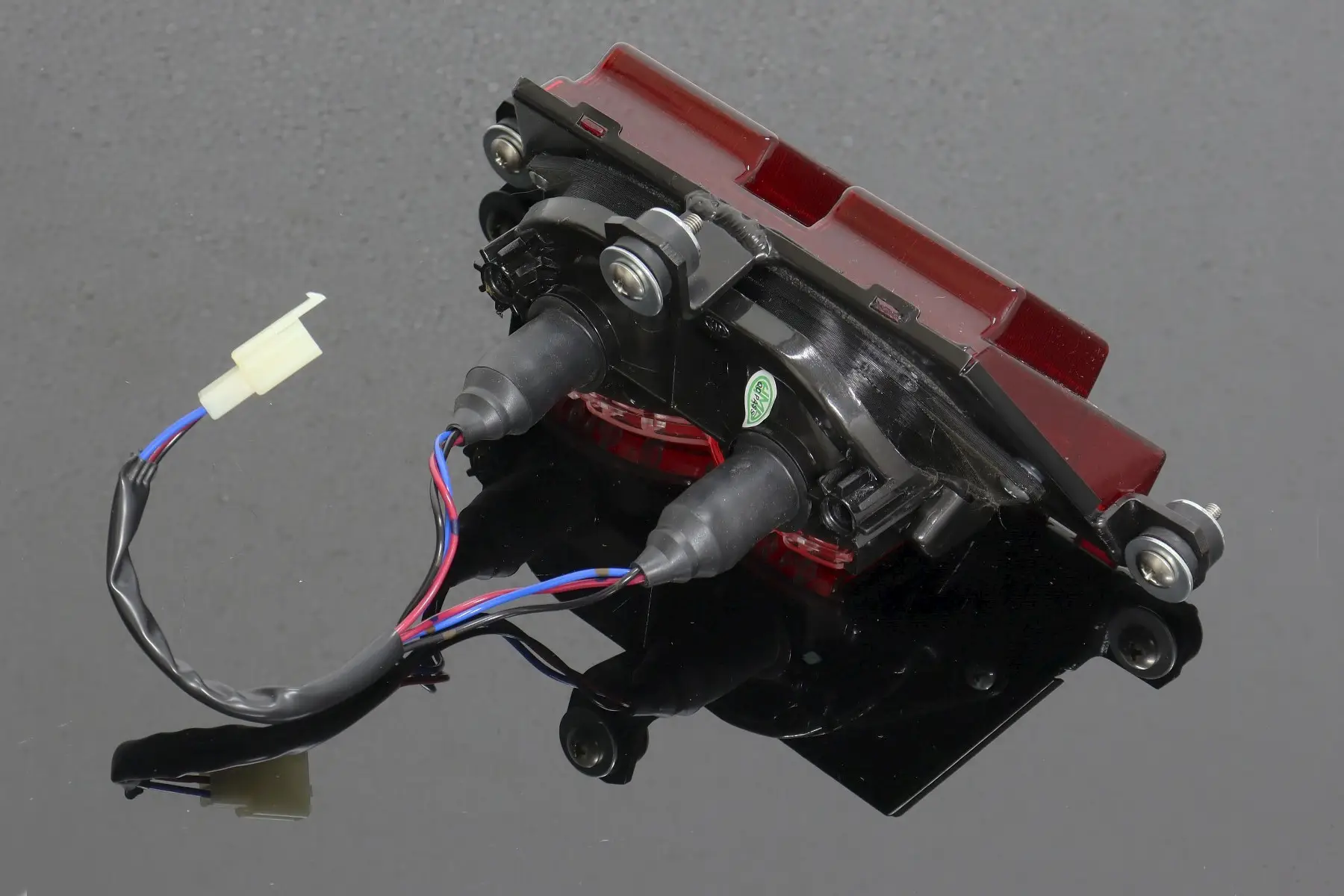

The tail light is fitted to the seat unit in exactly the same way as the standard NC30/RC30 tail light, using the three mounting screws, and simply plugs into the existing 3P connector on the main harness.

Complete with all hardware ready for assembly.

For NC35 see BPLT-0044

For the NC30, 3x M5 screws are required for mounting, whereas on the RC30 and RC36-2, RC30 Tribute, 3x M6 screws are required.

The tail light is supplied with 3x M6 and 3x M5 fasteners for your convenience.

The tail light bulbs can be replaced by removing the 2x M4 screws holding the body together.

For replacement lens see TYPP-0039.

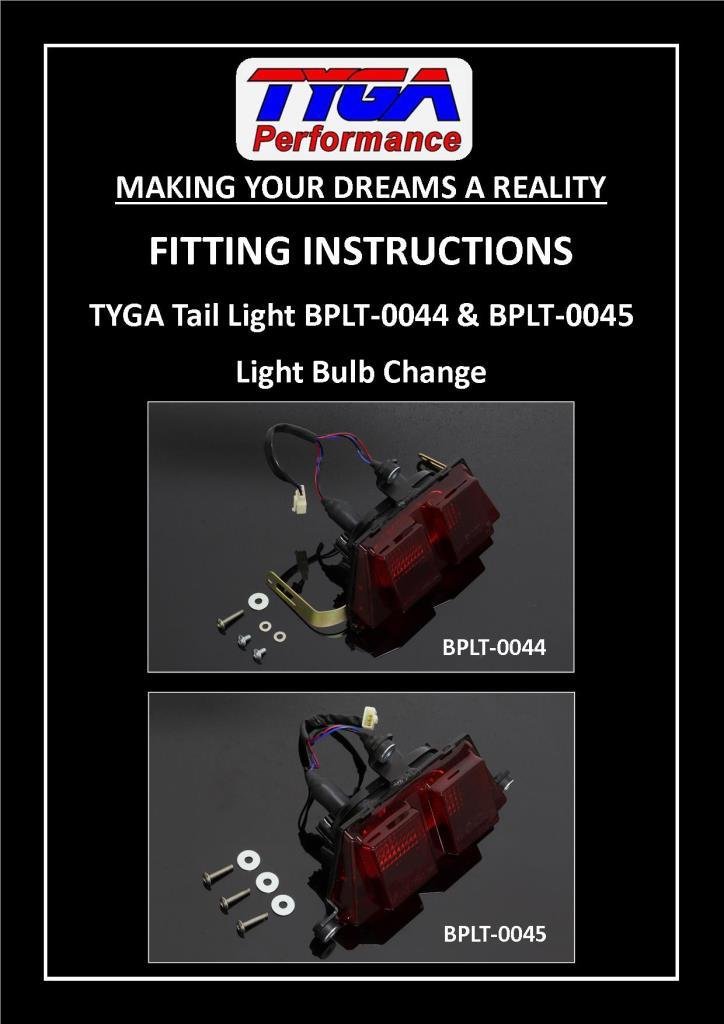

Fitting Instructions
